Product Details

Description



Features:

• Low feedback capacitance.


Application

• For use in video output stages of black and white and colour television receivers.

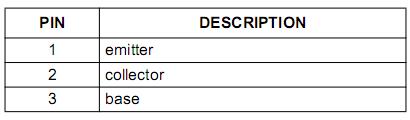

Pinout

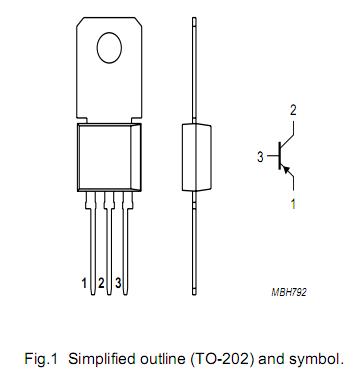

Connection Diagram Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VCBO collector-base voltage open emitter - −350 V
VCEO collector-emitter voltage open base - −350 V
VEBO emitter-base voltage open collector - −5 V
IC collector current (DC)   - −100 mA
ICM peak collector current   - −200 mA
IBM peak base current   - −100 mA
Ptot total power dissipation Tamb 25 - 1.6 W
Tmb 25 5 W
Tstg storage temperature   −65 +150
Tj junction temperature   - 150
Tamb operating ambient temperature   −65 +150



Description

PNP transistor BF588 in a TO-202 plastic package.
NPN complements: BF585 and BF587.
