Product Details

Description

Features:

• Low feedback capacitance.

Application

• For use in video output stages of black and white and colour television receivers

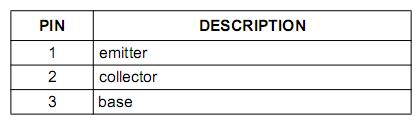

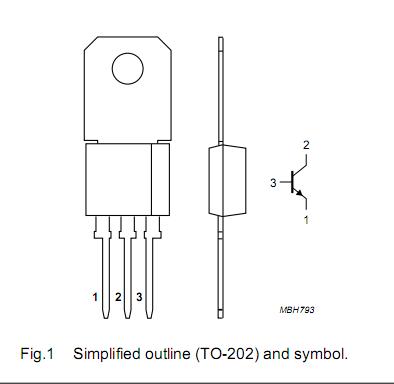

Pinout

Connection Diagram

Specifications

SYMBOL	PARAMETER	CONDITIONS	MIN.	MAX.	UNIT
V_CBO	collector-base voltage BF583 BF585 BF587	open emitter	- - -	300 350 400	V V V
V_CEO	collector-emitter voltage BF583 BF585 BF587	open base	− − −	250 300 350	V V V
V_EBO	emitter-base voltage	open collector	-	5	V
I_C	collector current (DC)		50	-	mA
I_CM	peak collector current		-	100	mA
I_BM	peak base current		-	50	mA
P_tot	total power dissipation	in free air; T_amb 25	-	1.6	W
P_tot	total power dissipation	in free air; T_mb 25	-	5	W
T_stg	storage temperature		−65	+150
T_j	junction temperature		-	150
T_amb	operating ambient temperature		−65	+150

Description

NPN transistors BF585 in a TO-202 plastic package.
