BF547

Features: • Feedback capacitance typ. 1 pF• Stable oscillator operation• High current gain• Good thermal stability.Application• It is intended for VHF and UHF TV-tuner applications and can be used as a mixer and/or oscillator.PinoutSpecifications SYMBOL PARAMETE...

product image

BF547 Picture
See larger image
SeekIC No. : 004299510 Detail

BF547: Features: • Feedback capacitance typ. 1 pF• Stable oscillator operation• High current gain• Good thermal stability.Application• It is intended for VHF and UHF TV-tuner ...

BF547 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
BF547
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/6/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Feedback capacitance typ. 1 pF
• Stable oscillator operation
• High current gain
• Good thermal stability.


Application

• It is intended for VHF and UHF TV-tuner applications and can be used as a mixer and/or oscillator.


Pinout

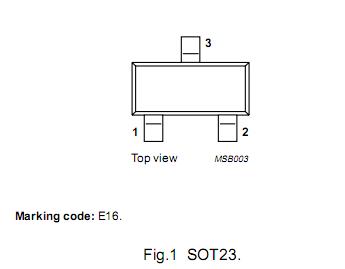

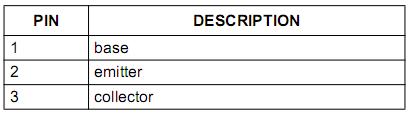

Connection Diagram Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VCEO collector-emitter voltage open base - 20 V
VCBO collector-base voltage open emitter - 30 V
VEBO emitter-base voltage open collector - 3 V
ICM peak collector current   - 50 mA
Ptot total power dissipation up to Ts =70 ; note 1 - 300 mW
Tstg storage temperature range   −65 +150
Tj junction temperature   - 150
Note
1. Ts is the temperature at the soldering point of the collector pin.


Description

Low cost NPN transistor BF547 in a plastic SOT23 package.
