Product Details

Description



Features:

• Low leakage level (typ. 500 fA)
• High gain
• Low cut-off voltage (max. 2.2 V for BF545A).


Application

• Impedance converters in e.g. electret microphones and infra-red detectors
• VHF amplifiers in oscillators and mixers.

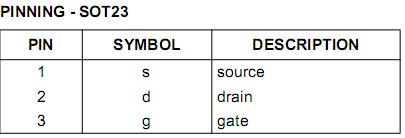

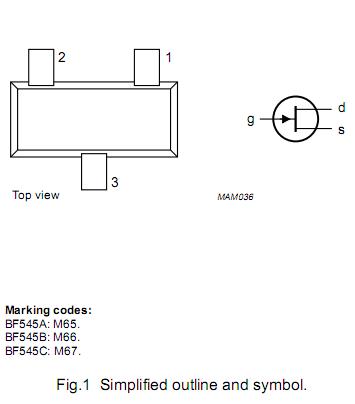

Pinout

Connection Diagram Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VDS drain-source voltage   - ±30 V
VGSO gate-source voltage open drain - −30 V
VGDO gate-drain voltage (DC) open source - −30 V
IG forward gate current (DC)   - 10 mA
Ptot total power dissipation up to Tamb =25 ; note 1 - 250 mW
Tstg storage temperature   −65 150
Tj operating junction temperature   - 150
Note
1. Device mounted on an FR4 printed-circuit board, maximum lead length 4 mm; mounting pad for the drain
lead 10 mm2


Description

N-channel symmetrical silicon junction field-effect transistors BF545C in a SOT23 package.
