BC817-16W-7, US $ .07-.31 , Diodes Inc., BC817-16W-7 DataSheet download, circuit diagram from SeekIC.com

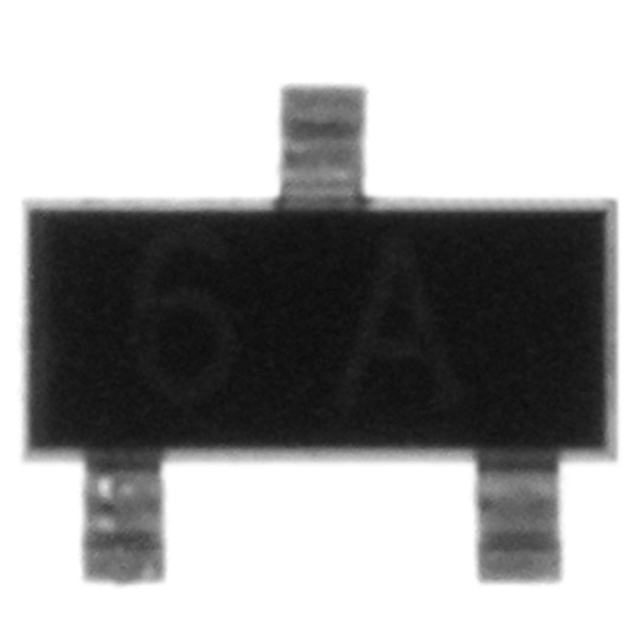

See larger image

SeekIC No. : 00206374 Detail

BC817-16W-7: Transistors Bipolar (BJT) NPN SURFACE MOUNT SMALL SIGNAL TRANS

BC817-16W-7 Data Sheet

US $ .07~.31 / Piece | Get Latest Price

Part Number:: BC817-16W-7
Mfg:: Diodes Inc.
Supply Ability:: 5000

Price Break

Qty
0~1
1~10
10~100
100~500

Unit Price
$.31
$.22
$.13
$.07

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

BC817 evaluate
US $.03 - .04 / Piece

Transistors Bipolar (BJT) Gen Pur Trans NPN,0.8A,45V
BC817 /T3 evaluate
Transistors Bipolar (BJT) TRANS GP TAPE-13
BC817,215 evaluate
US $.01 - .03 / Piece

Transistors Bipolar (BJT) TRANS GP TAPE-7

Product Details

Quick Details

Transistor Polarity :	NPN	Collector- Emitter Voltage VCEO Max :	45 V
Emitter- Base Voltage VEBO :	5 V	Maximum DC Collector Current :	1 A
DC Collector/Base Gain hfe Min :	100 at 100 mA at 1 V	Configuration :	Single
Maximum Operating Frequency :	100 MHz (Min)	Maximum Operating Temperature :	+ 150 C
Mounting Style :	SMD/SMT	Package / Case :	SOT-323
Packaging :	Reel

Description

Transistor Polarity : NPN
Configuration : Single
Maximum Operating Temperature : + 150 C
Mounting Style : SMD/SMT
Packaging : Reel
Emitter- Base Voltage VEBO : 5 V
Package / Case : SOT-323
Collector- Emitter Voltage VCEO Max : 45 V
Maximum Operating Frequency : 100 MHz (Min)
Maximum DC Collector Current : 1 A
DC Collector/Base Gain hfe Min : 100 at 100 mA at 1 V

Parameters:

Technical/Catalog Information	BC817-16W-7
Vendor	Diodes Inc (VA)
Category	Discrete Semiconductor Products
Transistor Type	NPN
Voltage - Collector Emitter Breakdown (Max)	45V
Current - Collector (Ic) (Max)	500mA
Power - Max	310mW
DC Current Gain (hFE) (Min) @ Ic, Vce	100 @ 100mA, 1V
Vce Saturation (Max) @ Ib, Ic	700mV @ 50mA, 500mA
Frequency - Transition	100MHz
Current - Collector Cutoff (Max)	100nA
Mounting Type	Surface Mount
Package / Case	SC-70-3, SOT-323-3
Packaging	Digi-Reel?
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	BC817 16W 7 BC81716W7 BC817 16WDIDKR ND BC81716WDIDKRND BC817-16WDIDKR
