BAV70W-7 Selling Leads, Price trend , Diodes Inc., BAV70W-7 DataSheet download, circuit diagram from SeekIC.com

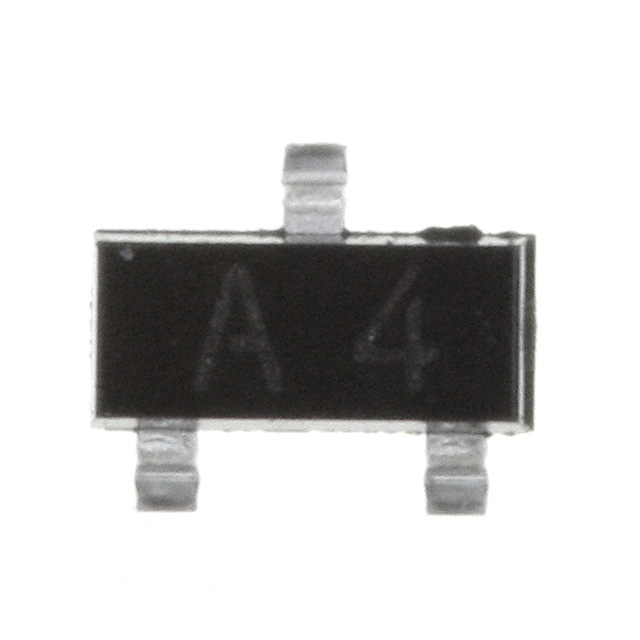

See larger image

SeekIC No. : 00139126 Detail

BAV70W-7: Diodes (General Purpose, Power, Switching) 75V 200mW

BAV70W-7 Data Sheet

Get Latest Price

Part Number:: BAV70W-7
Mfg:: Diodes Inc.
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/7

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

BAV70 evaluate
US $.01 - .01 / Piece

Diodes (General Purpose, Power, Switching) 70 Volt 200mA 225mW
BAV70 /T3 evaluate
Diodes (General Purpose, Power, Switching) DIODE SW TAPE-11
BAV70,215 evaluate
US $.01 - .03 / Piece

Diodes (General Purpose, Power, Switching) SW DBL 75V 215MA HS

Product Details

Quick Details

Product :	Switching Diodes	Peak Reverse Voltage :	75 V
Forward Continuous Current :	0.15 A	Max Surge Current :	2 A
Configuration :	Dual Common Cathode	Recovery Time :	4 ns
Forward Voltage Drop :	1.25 V	Maximum Reverse Leakage Current :	2.5 uA
Operating Temperature Range :	- 65 C to + 150 C	Package / Case :	SOT-323
Packaging :	Reel

Description

Maximum Power Dissipation :
Product : Switching Diodes
Packaging : Reel
Package / Case : SOT-323
Recovery Time : 4 ns
Forward Voltage Drop : 1.25 V
Forward Continuous Current : 0.15 A
Max Surge Current : 2 A
Operating Temperature Range : - 65 C to + 150 C
Peak Reverse Voltage : 75 V
Configuration : Dual Common Cathode
Maximum Reverse Leakage Current : 2.5 uA

Parameters:

Technical/Catalog Information	BAV70W-7
Vendor	Diodes Inc (VA)
Category	Discrete Semiconductor Products
Diode Type	Standard
Diode Configuration	1 Pair Common Cathode
Voltage - DC Reverse (Vr) (Max)	75V
Current - Average Rectified (Io) (per Diode)	150mA
Voltage - Forward (Vf) (Max) @ If	1.25V @ 150mA
Current - Reverse Leakage @ Vr	2.5A @ 75V
Reverse Recovery Time (trr)	4ns
Speed	Small Signal =< 200mA (Io), Any Speed
Mounting Type	Surface Mount
Package / Case	SC-70-3, SOT-323-3
Packaging	Cut Tape (CT)
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	BAV70W 7 BAV70W7 BAV70WDICT ND BAV70WDICTND BAV70WDICT
