BAV70DW

Features: ` Fast Switching Speed` Ultra-Small Surface Mount Package` For General Purpose Switching Applications` High Conductance` Two BAV70 Circuits In One PackagePinout Specifications Characteristic Symbol Value UNITS Non-Repetitive Peak Reverse Voltage VRM 100 V Peak ...

product image

BAV70DW Picture
See larger image
SeekIC No. : 004296621 Detail

BAV70DW: Features: ` Fast Switching Speed` Ultra-Small Surface Mount Package` For General Purpose Switching Applications` High Conductance` Two BAV70 Circuits In One PackagePinout Specifications Chara...

BAV70DW Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
BAV70DW
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/9/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Fast Switching Speed
` Ultra-Small Surface Mount Package
` For General Purpose Switching Applications
` High Conductance
` Two "BAV70" Circuits In One Package

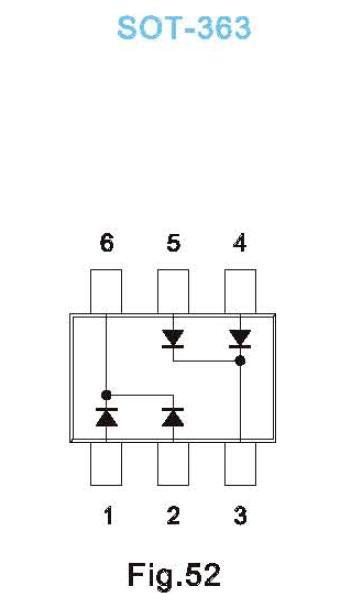

Pinout






Specifications

Characteristic Symbol
Value
 UNITS
Non-Repetitive Peak Reverse Voltage
VRM
100
V
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
VRRM
VRWM
VR
75
V
RMS Reverse Voltage
VR(RMS)
53
A
Forward Continuous Current (Note 1)
IF
300
mA
Average Rectified Output Current (Note 1)
IO
52
mA
Non-Repetitive Peak Forward Surge Current @ t = 1.0s
@ t = 1.0s
IFSM
2.0
1.0
A
Power Dissipation (Note 1)
Pd
200
mW
Thermal Resistance, Junction to Ambient Air (Note 1)
RJA
625
/W
Operating and Storage Temperature Range
Tj,TSTG
-65 to +150


Part Number BAV70DW
Power Rating (mW) 200
Total Capacitance CT (pF) 2
Peak Repetitive Reverse Voltage VRRM (V) 75
Reverse Recovery Time trr (ns) 4
Max Average Rectifier Current IO (mA) 150
Max Peak Forward Surge Current IFSM (A) 2
Forward Voltage Drop VF (V) 1
Max Reverse Current IR (µA) 2.5
