Product Details

Description



Features:

· Operates on a single 5V power supply, with low power consumption.
· Synchronization signal existence and polarity detection output.
· Adjustable clamp pulse width, allowing for the selection of front or back editing.
· Vertical synchronization separation is based on horizontal frequency tracking, for separation
    starting at 1H.
· Minimal attached components.


Application

·CRT displays


Pinout

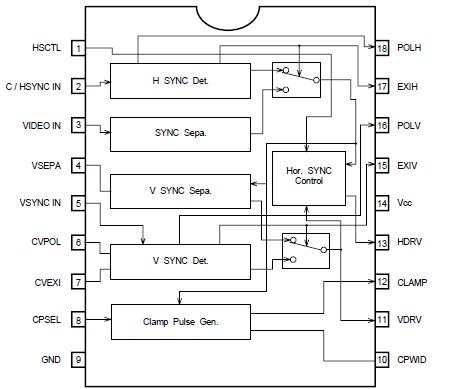

Connection Diagram


Specifications

Parameter
Symbol
Limits
Unit
Power supply voltage
VCC
7.0
V
Power dissipation
Pd
600
mW
Operating temperature
Topr
25 ~ + 75
°C
Storage temperature
Tstg
55 ~ + 125
°C
* Reduced by 6mW for each increase in Ta of 1°C over 25°C.


Description

The BA7078S is a synchronization signal processing LSI chip designed for multiscan high-definition displays. It generates a synchronization signal and clamp pulse for three types of input signals: separate synchronization, composite synchronization, and synchronization on video.
