Description

Features:

Logic and power sections have separate ground pins; this allows the IC to drive speed-variable, reversible motors by connecting an electronic governor circuit.
Built-in power saving circuit suppresses the stop mode current dissipation.
Output voltage can be set arbitrarily with the V_ref pin.
Interfaces with TTL devices.
Built-in thermal shutdown circuit.

Application

VCRs and audio equipment in general

Pinout

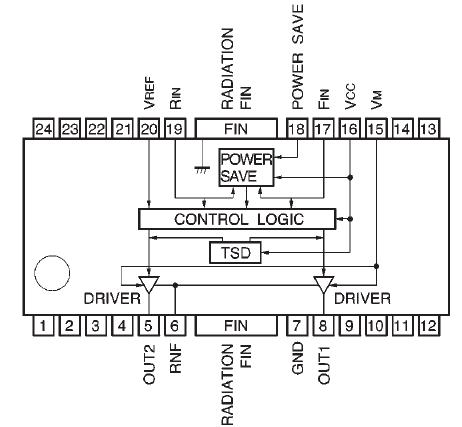

Connection Diagram

Specifications

Parameter		Symbol	Limits	Unit
Power supply Voltage		V_CC	18	V
Power dissipation	BA6285FS	P_d	800^*1	mW
Power dissipation	BA6285FP	P_d	1500^*2	mW
Operating temperature		T_opr	-20~+75
Storage temperature		T_stg	-55~+150
Output current		I_OMax	1000^*3	mA

Description

The BA6285FS and BA6285FP are reversible-motor drivers with a maximum output current of 1.0A. Two logic inputs allow four output modes: forward, reverse, stop (idling), and brake. A built-in power saving circuit suppresses current consumption when the motor is in stop mode.
