BA6208

Series: -
Number of Outputs: 1
Evaluation Tools: -
Voltage - Load: -
Packaging: Tube
Mounting Type: Through Hole
Manufacturer: Rohm Semiconductor
Applications: DC Motor Driver
Current - Output: 200mA
Package / Case: 9-SIP
Supplier Device Package: 9-SIP
Voltage - Supply: 4.5 V ~ 15 V
Operating Temperature: -20°C ~ 60°C


Features:

  Motor driving power transistors are built in (100mA typically).
  Brake is applied when stopping the motor (when inputs A and B are both HIGH level).
  Built-in diode to absorb surge currents.
  Very low standby circuit current when inputs A and B are both LOW level.
  Wide range of operating supply voltage (4.5 ~ 15.0V).
  Direct control with the TTL logic.

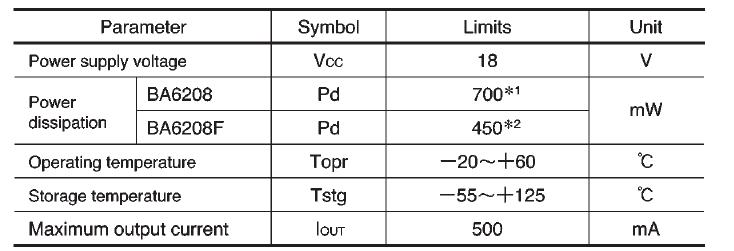

Specifications




Description

The BA6208 and BA6208F are monolithic ICs used for driving reversible motors. They allow control of reversible motors in cassette players and other electrical equipment by using TTL-level logic signals.

The ICs contain a logic section, which controls forward and reverse rotations as well as forced stop, and an output power section, which can supply an output current of up to 100mA (typical) according to the logic control.

Parameters:

Technical/Catalog Information	BA6208
Vendor	Rohm Semiconductor
Category	Integrated Circuits (ICs)
Applications	DC Motor Driver
Number of Outputs	1
Voltage - Supply	4.5 V ~ 15 V
Voltage - Load	-
Current - Output	200mA
Operating Temperature	-20°C ~ 60°C
Package / Case	9-SIP
Packaging	Tube
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	BA6208 BA6208
