Product Details

Description

Features:

Logic and driver sections have separate ground pins; this allows the IC to drive speed-variable, reversible motors by connecting an electronic governor circuit.
Built-in power saving circuit suppresses current consumption in stop (standby) mode.
Interfaces with TTL devices.
Built-in thermal shutdown circuit.

Application

VCRs, audio devices

Pinout

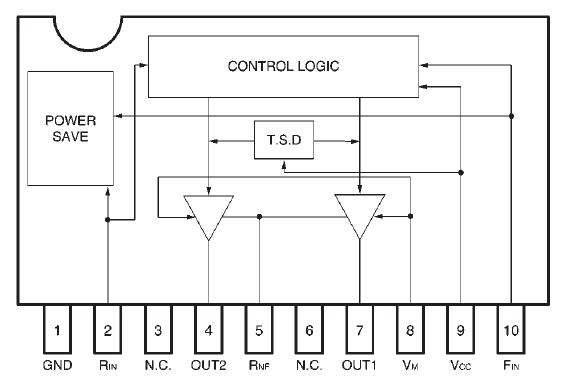

Connection Diagram

Specifications

Parameter		Symbol	Limits	Unit
Applied Voltage		V_CC	18	V
Power dissipation	BA6283N	P_d	1150^*1	mW
	BA6284N		1150^*1
	BA6599N		1080^*2
Operating temperature		T_opr	-25~+75
Storage temperature		T_stg	-55~+150
Output current		I_OUT	1000^*3	mA

Description

The BA6283N, BA6284N, and BA6955N are reversible-motor drivers with a maximum output current of 1.0 A. Two logic inputs allow four output modes: forward, reverse, stop (standby), and brake.

The built-in power save circuit suppresses current consumption in the motor stop mode.
