SeekIC No. : 00533295 Detail

BA6283N: Motor / Motion / Ignition Controllers & Drivers REVERS MOTOR DRVR

BA6283N Data Sheet

US $ .6~.6 / Piece | Get Latest Price

Part Number:: BA6283N
Mfg:: ROHM Semiconductor
Supply Ability:: 5000

Price Break

Qty
0~1000

Unit Price
$.6

Processing time
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/5/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

BA6295AFP evaluate
Features: 1) 2-channel BTL driver.2) High output current. (Io = IA Typ.)3) HSOP 28-pin package all...
BA6297AFP evaluate
Features: 1)4-channel BTL driver.2)HSOP 28-pin package allows for miniaturization of applications....
BA6289F evaluate
Features: 1) Two logic inputs allow four output modes: forward, reverse, stop (idling), and brake....

Product Details

Quick Details

Mounting Style :	Through Hole	Package / Case :	SIP-9
Packaging :	Bulk

Description

Product :
Type :
Operating Supply Voltage :
Supply Current :
Packaging : Bulk
Mounting Style : Through Hole
Package / Case : SIP-9

Features:

Logic and driver sections have separate ground pins; this allows the IC to drive speed-variable, reversible motors by connecting an electronic governor circuit.
Built-in power saving circuit suppresses current consumption in stop (standby) mode.
Interfaces with TTL devices.
Built-in thermal shutdown circuit.

Application

VCRs, audio devices

Pinout

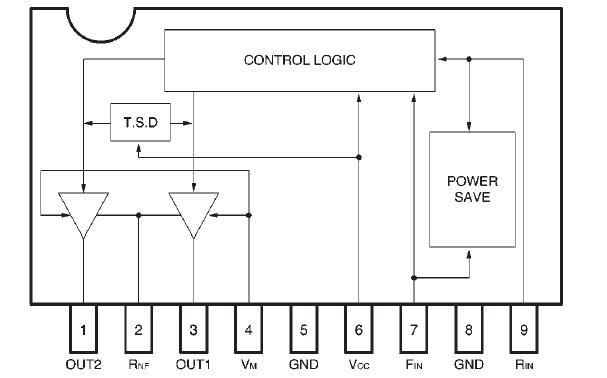

Connection Diagram

Specifications

Parameter		Symbol	Limits	Unit
Applied Voltage		V_CC	18	V
Power dissipation	BA6283N	P_d	1150^*1	mW
	BA6284N		1150^*1
	BA6599N		1080^*2
Operating temperature		T_opr	-25~+75
Storage temperature		T_stg	-55~+150
Output current		I_OUT	1000^*3	mA

Description

The BA6283N, BA6284N, and BA6955N are reversible-motor drivers with a maximum output current of 1.0 A. Two logic inputs allow four output modes: forward, reverse, stop (standby), and brake.

The built-in power save circuit suppresses current consumption in the motor stop mode.

Parameters:

Technical/Catalog Information	BA6283N
Vendor	Rohm Semiconductor
Category	Integrated Circuits (ICs)
Applications	DC Motor Driver
Number of Outputs	1
Voltage - Supply	5.5 V ~ 15 V
Voltage - Load	-
Current - Output	1A
Operating Temperature	-20°C ~ 75°C
Package / Case	9-SIP
Packaging	Tube
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	BA6283N BA6283N
