Product Details

Description

Features:

Wide range of operating voltage. (1.8 ~ 5V)
Low current consumption. (IQ = 2.0mA)
Various DC motors can be driven by changing the external CR time constants.

Application

3V radio cassette tape recorders
Micro-cassette tape recorders

Pinout

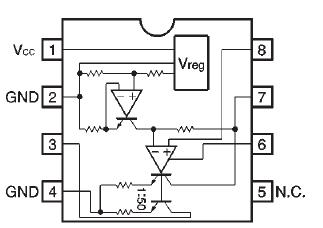

Connection Diagram

Specifications

Parameter		Symbol	Limits	Unit
Power supply voltage		V_cc	8.0	V
Power dissipation	BA6235F	P_d	350^*	mW
Operating temperature		T_opr	-20~+75
Storage temperature		T_stg	-55~+125

Description

The BA6235F is an IC for controlling the speed of low voltage DC motors. It consists of a reference voltage generator, current multiplier, and DC amplifier. The speed of DC motor is controlled by detecting the counter-electromotive force generated by the motor. Various DC motors can be driven by changing the external CR time constants.
