Product Details

Description



Features:

 Built-in power transistor for motor driving (1.2A Max.).
Low quiescent current. (VCC=12V, IQ=1mA)
Wide range of operating supply voltage (8 ~ 23V).
Interfaces with CMOS devices.
Four output modes: forward, reverse, stop (open), and brake.
Built-in diode absorbs surge currents.

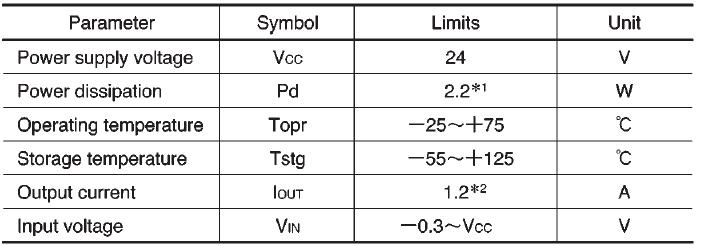

Specifications

Connection Diagram


Description

The BA6229 is a monolithic IC used for driving reversible motors. The ICs contain a logic section by which brake and open modes can be set and an output power transistor by which forward and reverse operations are controlled.
