BA6222, US $ 1.22-1.25 , ROHM Semiconductor, BA6222 DataSheet download, circuit diagram from SeekIC.com

See larger image

SeekIC No. : 00533825 Detail

BA6222: Motor / Motion / Ignition Controllers & Drivers 2.2A Reversible Motor Driver

BA6222 Data Sheet

US $ 1.22~1.25 / Piece | Get Latest Price

Part Number:: BA6222
Mfg:: ROHM Semiconductor
Supply Ability:: 5000

Price Break

Qty
0~500
500~1000

Unit Price
$1.25
$1.22

Processing time
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/1/2

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

BA6208 evaluate
US $.34 - .34 / Piece

IC DRIVER REVERSE MOTOR SIP9
BA6208F evaluate
Features: Motor driving power transistors are built in (100mA typically). Brake is applied when s...
BA6208F-E2 evaluate
US $.29 - .29 / Piece

IC DRIVER REVERSE MOTOR SOP8 TR

Product Details

Quick Details

Product :	Fan / Motor Controllers / Drivers	Type :	Reversible Motor Driver
Supply Current :	60 mA	Mounting Style :	SMD/SMT
Package / Case :	HSIP-10	Packaging :	Tube

Description

Operating Supply Voltage :
Product : Fan / Motor Controllers / Drivers
Mounting Style : SMD/SMT
Packaging : Tube
Supply Current : 60 mA
Package / Case : HSIP-10
Type : Reversible Motor Driver

Features:

Large output current. (I_OMax. = 2.2A)
Built-in thermal shutdown circuit.
Output voltage can be adjusted arbitrarily with the output voltage setting pin. Because the pin has a gain of 11.4dB, a high output voltage can be set with a low input voltage.
Small standby circuit current.

Application

VCRs

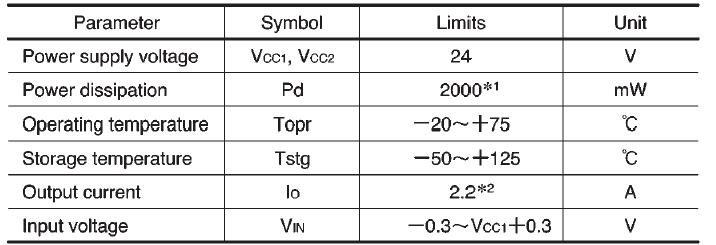

Specifications

Connection Diagram

Description

The BA6222 is a reversible-motor driver with a maximum output current of 2.2A. Two logic inputs allow four output modes: forward, reverse, idling, and braking. The motor revolving speed can be set arbitrarily by controlling the voltage applied to the motor.
