BA3853BFS

Features: 1) Provides electronic control for volume, balance, fader, tone (bass and treble), and loudness.2) The volume control circuit is a low-distortion, lownoise VCA circuit that uses DC voltage for control. The IC uses an internally-generated, temperaturecompensated reference voltage and is c...

product image

BA3853BFS Picture
SeekIC No. : 004295515 Detail

BA3853BFS: Features: 1) Provides electronic control for volume, balance, fader, tone (bass and treble), and loudness.2) The volume control circuit is a low-distortion, lownoise VCA circuit that uses DC voltage...

floor Price/Ceiling Price

Part Number:
BA3853BFS
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/10/31

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

1) Provides electronic control for volume, balance, fader,
  tone (bass and treble), and loudness.
2) The volume control circuit is a low-distortion, lownoise
  VCA circuit that uses DC voltage for control.
  The IC uses an internally-generated, temperaturecompensated
  reference voltage and is capable of
  dual-channel control with the addition of a single potentiometer.
3) Available in an SSOP-24 package that is ideal for compact designs.



Application

Car audio systems


Pinout

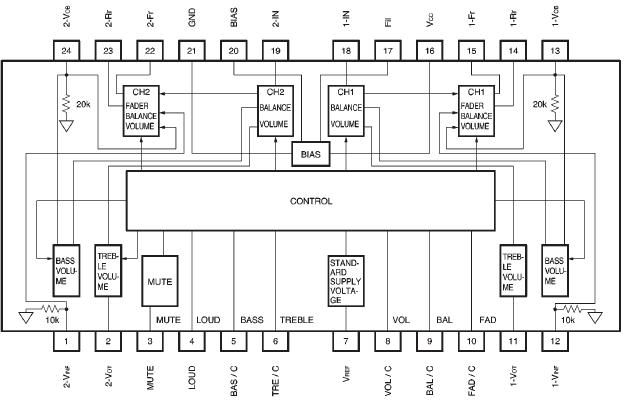

  Connection Diagram

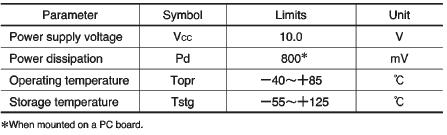

Specifications

  Connection Diagram


Description

The BA3853BFS is a dual-channel electronic volume controller built around a low-noise, low-distortion VCA. It is suited for car-audio applications, and has performance that rivals mechanical-type volume controllers.

In addition to volume control, the IC includes all functions required for controlling sound quality, to allow more compact designs with far fewer components.
