BA3812L

IC EQUALIZER GRAPHIC 5-CH ZIP18

product image

BA3812L Picture
SeekIC No. : 003537242 Detail

BA3812L: IC EQUALIZER GRAPHIC 5-CH ZIP18

floor Price/Ceiling Price

US $ .43~.43 / Piece | Get Latest Price
Part Number:
BA3812L
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 0~1000
  • Unit Price
  • $.43
  • Processing time
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/10/30

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Series: - Manufacturer: Rohm Semiconductor
Type: Equalizer Applications: Automotive Systems, Home Theater, TV
Mounting Type: Through Hole Package / Case: 18-SIP (Bent and Staggered Leads)
Supplier Device Package: 18-ZIP Maximum Power Dissipation : 4500 mW

Description

Series: -
Mounting Type: Through Hole
Packaging: Tube
Applications: Automotive Systems, Home Theater, TV
Manufacturer: Rohm Semiconductor
Type: Equalizer
Package / Case: 18-SIP (Bent and Staggered Leads)
Supplier Device Package: 18-ZIP


Features:

·Minimizes the number of components required to build a graphic equalizer.
·Low distortion and low noise.
· Wide operating power supply voltage range (3.5V to 16V).
·Low current dissipation (5 mA).
·Wide dynamic range (VOM = 2.1Vrms/VCC = 8V).
·Built-in input and output buffer amplifiers.



Application

Radio cassette players, home stereo systems and car stereo systems.


Pinout

  Connection Diagram

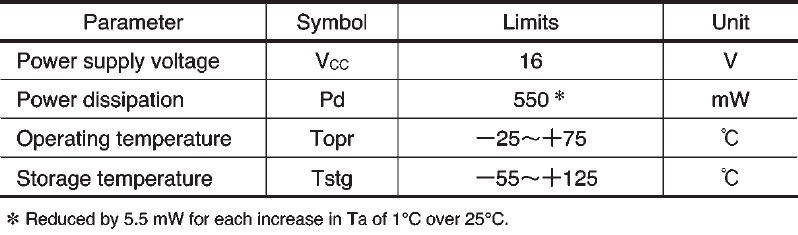

Specifications

  Connection Diagram


Description

The BA3812L is a five-point graphic equalizer that has all the required functions integrated onto one IC. The IC is comprised of the five tone control circuits and input and output buffer amplifiers.

The BA3812L features low distortion, low noise, and wide dynamic range, and is an ideal choice for Hi-Fi stereo applications.

It also has a wide operating voltage range (3.5V to 16V), which means that it can be adapted for use with most types of stereo equipment.

The five center frequencies are independently set using external capacitors, and as the output stage buffer amplifier and tone control section are independent circuits, fine control over a part of the frequency bandwidth is possible, By using two BA3812Ls, it is possible to construct a 10-point graphic equalizer.

The amount of boost and cut can be set by external components.




Parameters:

Technical/Catalog InformationBA3812L
VendorRohm Semiconductor
CategoryIntegrated Circuits (ICs)
Mounting TypeThrough Hole
Package / Case18-SIP (Bent and Staggered Leads)
TypeEqualizer
PackagingTube
ApplicationsAutomotive Systems, Home Theater, TV
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names BA3812L
BA3812L
