Product Details

Description



Features:

· Open-collector output transistor with 300mA drive capacity.
· Sense time, TC, can be set to the desired length using an external RC circuit.
· By grounding the MUTE input (pin 6), song selection can be forcibly halted.
· When muted, the input impedance at the input (pin 3) is several hundred ohms, which prevents crosstalk between left and right channels in stereo equipment.
· The circuit has been designed to prevent incorrect operation due to tape noise between songs.
·A wide operating power supply voltage range (3V to 14V).


Application

·Mute, and end-of-tape detector for tape players

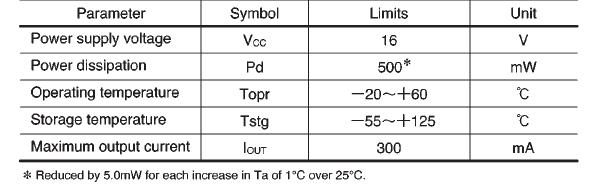

Specifications

Connection Diagram


Description

The BA3707 is a mute detector, with an on-chip output transistor that can directly drive a solenoid. It features low operating voltage, and a wide power supply voltage range.
