Product Details

Description



Features:

· Low Dropout Voltage: 1.2V at 800mA Output Current
· Output Noise from 10Hz to 10KHz: 0.003%
· PSRR at IOUT=300mA and f=120Hz: 70dB
· Output Voltage Accuracy: ±1%
· On-chip Thermal Shutdown
· Maximum Quiescent Current: IQMAX=6mA
· Operation Junction Temperature: -20 to 105oC


Application

· USB Device
· Add-on Card
· DVD Player
· PC Motherboard

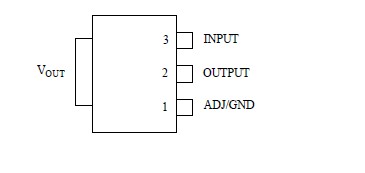

Pinout

Connection Diagram


Specifications

Parameter Symbol Value Unit
Input Voltage VIN 18 V
Operating Junction Temperature Range TJ 150 oC
Storage Temperature Range TSTG -65 to 150 oC
Lead Temperature (Soldering, 10sec) TLEAD 260 oC

Note 1: Stresses greater than those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "Recommended Operating Conditions" is not implied. Exposure to "Absolute Maximum Ratings" for extended periods may affect device reliability.


Description

The AZ1117B is a low dropout three-terminal regulator with a dropout of 1.2V at 800mA output current.

The AZ1117B has been optimized for low voltage where transient response and minimum input voltage are critical. It provides current limit and thermal shutdown. Its circuit includes a trimmed bandgap reference to assure output voltage accuracy to be within ±1%. On-chip thermal shutdown provides protection against a combination of high current and ambient temperature that would create excessive junction temperature.

The AZ1117B is available in 1.8V, 2.5V and 3.3V versions. The fixed versions integrate the adjust resistors.

It is also available in an adjustable version which can set the output voltage with two external resistors. The AZ1117B is available in the industry-standard SOT-223 power package.
