Product Details

Description

Features:

Attenuation: 1.0dB Steps to 31dB
Single Positive Supply
Contains internal DC to DC converter
Low DC Power Consumption
Small Footprint, JEDEC Package
Integral TTL Driver
50 ohm Impedance

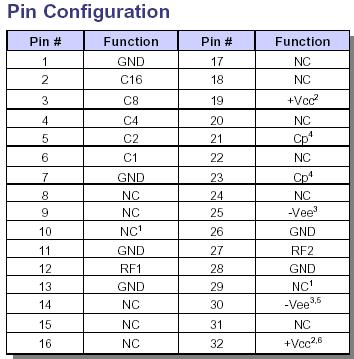

Pinout

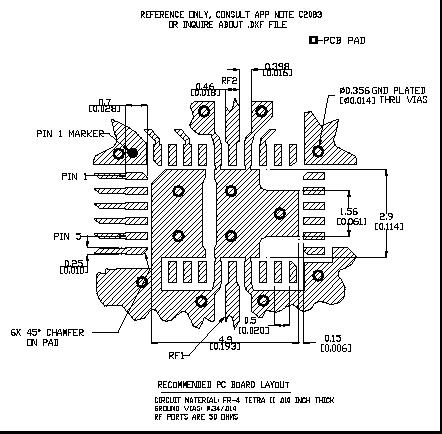

Connection Diagram

Specifications

Parameter	Absolute Maximum
Max. Input Power 0.05 GHz 0.5 - 2.5 GHz	+27 dBm +34 dBm
+Vcc	+5.5V
Logic Voltages⁹	-0.5 to +Vcc + 0.5V
Operating Temperature	-40°C to +85°C
Storage Temperature	-65°C to +125°C

Description

M/A-COM's AT90-1263 is a GaAs FET 5-bit digital attenuator with integral TTL driver. Step size is 1.0 dB providing 31dB total attenuation range. This device is in an FQFP-N plastic surface mount package. The AT90- 1263 is ideally suited for use where accuracy, fast speed, very low power consumption and low costs are required.
