AT90-0001

Features:

Attenuation: 1.0 dB Steps to 31 dB
High Accuracy to 6 GHz
Small Footprint, JEDEC Package
Integral TTL driver
50 ohm impedance
Test boards are available
Tape and Reel Packaging Available

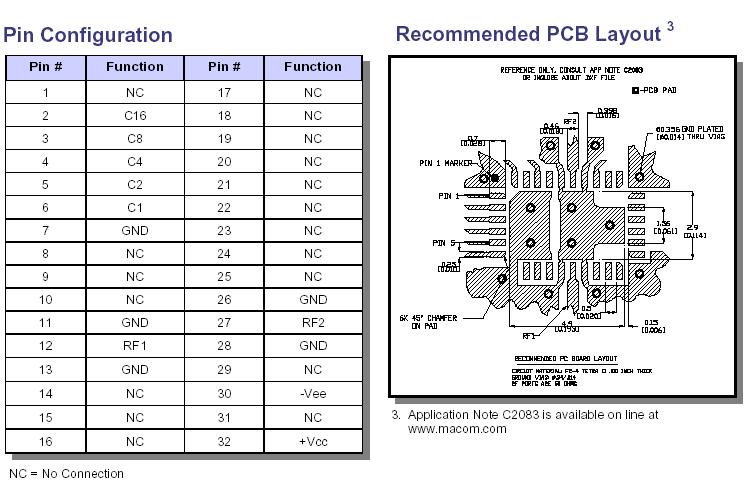

Pinout




Specifications

Parameter	Absolute Maximum
Max. Input Power 0.05 GHz 0.5 - 6.0 GHz	+27 dBm +34 dBm
+Vcc	+5.5V
-Vee	-8.5V
Logic Voltages 2	-0.5 to +Vcc + 0.5V
Operating Temperature	-40°C to +85°C
Storage Temperature	-65°C to +125°C

Description

M/A-COM's AT90-0001 is a GaAs FET 5-bit digital attenuator with an integral TTL driver. Step size is 1.0 dB provi-ding 31 dB total attenuation range. This device is in a 32 lead FQFP-N surface mount package. Due to superior gro-unding techniques this digital attenuator offers superior performance to 6 GHz. The AT90-0001 is ideally suited for use where accuracy, fast speed, very low power consumption and low costs are required.
