AT90-0106

Features: Attenuation: 1 dB Steps to 50 dBLow DC Power ConsumptionSmall Footprint, JEDEC PackageIntegral TTL Driver50 ohm ImpedanceTest Boards are AvailableTape and Reel Packaging AvailablePinoutSpecifications Parameter Absolute Maximum Max. Input Power0.05 GHz0.5 - 2.4 GHz +27 d...

product image

AT90-0106 Picture
See larger image
SeekIC No. : 004290847 Detail

AT90-0106: Features: Attenuation: 1 dB Steps to 50 dBLow DC Power ConsumptionSmall Footprint, JEDEC PackageIntegral TTL Driver50 ohm ImpedanceTest Boards are AvailableTape and Reel Packaging AvailablePinoutSpe...

AT90-0106 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AT90-0106
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Attenuation: 1 dB Steps to 50 dB
Low DC Power Consumption
Small Footprint, JEDEC Package
Integral TTL Driver
50 ohm Impedance
Test Boards are Available
Tape and Reel Packaging Available

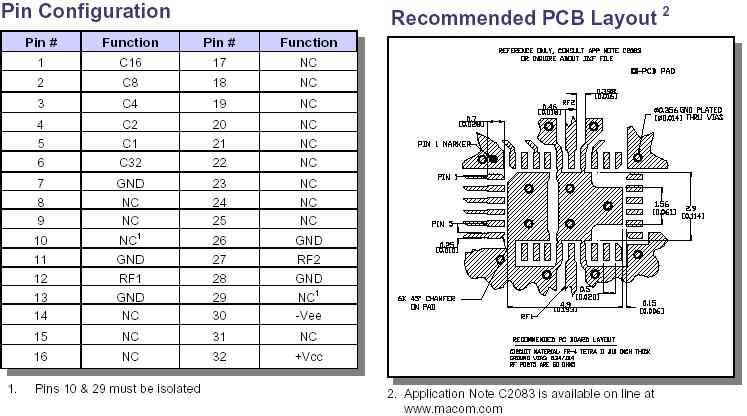

Pinout

Connection Diagram


Specifications

Parameter
Absolute Maximum
Max. Input Power
0.05 GHz
0.5 - 2.4 GHz

+27 dBm
+34 dBm
+Vcc
+5.5V
-Vee
-8.5V
Logic Voltages 4
-0.5 to +Vcc + 0.5V
Operating Temperature
-40°C to +85°C
Storage Temperature
-65°C to +125°C



Description

M/A-COM's AT90-0106 is a GaAs FET 6-bit digital attenuator with integral TTL driver. Step size is 1 dB providing a 50 dB total attenuation range. This device is in a FQFP-N plastic surface mount package. The AT90- 0106 is ideally suited for use where accuracy, fast speed, very low power consumption and low costs are required.
