AT90-1106

Features:

Attenuation: 1 dB Steps to 50 dB
Single Positive Supply
Contains Internal DC to DC Converter
Low DC Power Consumption
Small Footprint, JEDEC Package
Integral TTL Driver
50 ohm Impedance

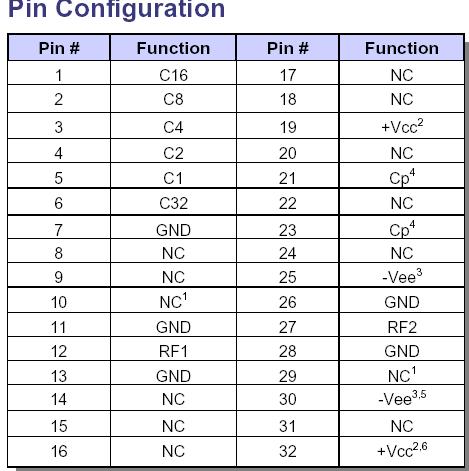

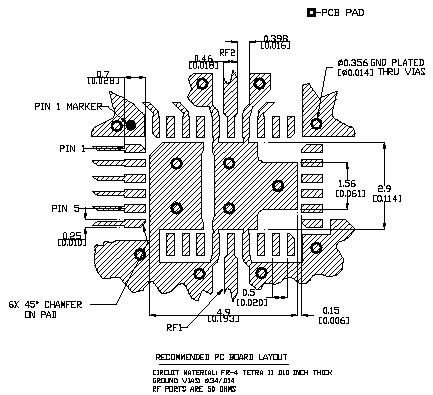

Pinout




Specifications

Parameter	Absolute Maximum
Max Input Power 0.05 GHz 0.5 - 4.0 GHz	+27 dBm +34 dBm
+Vcc	+5.5V
Logic Voltages 9	-0.5V + VCC + 0.5V
Operating Temperature	-40°C to +85°C
Storage Temperature	-65°C to +125°C

Description

     M/A-COM's AT90-1106 is a GaAs FET 6-bit digital attenuator with integral TTL driver. Step size is 1 dB providing a 50 dB total attenuation range. This device is in a FQFP-N plastic surface mount package. The AT90- 1106 is ideally suited for use where accuracy, fast speed, very low power consumption and low costs are required.
