AT90-0413

Number of Channels :
Maximum Frequency :
Impedance :
Maximum VSWR :
Number of Bits :
Maximum Operating Temperature :
Minimum Operating Temperature :


Features:

Attenuation: 1 dB Steps to 15 dB
Low DC Power Consumption
Small Footprint, JEDEC Package
Integral TTL Driver
50 Ohm Impedance
Test Boards Available
Tape and Reel Packaging Available

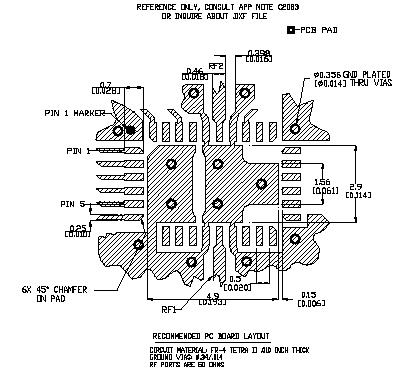

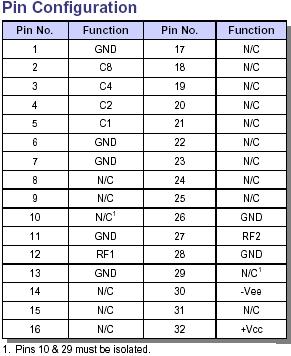

Pinout




Specifications

Parameter	Absolute Maximum
Max. Input Power       0.05 GHz       0.5 - 3.0 GHz	+27 dBm +34 dBm
+Vcc	+5.5V
-Vee	-8.5V
Logic Voltages4	-0.5 to Vcc + 0.5V
Operating Temperature	-40°C to +85°C
Storage Temperature	-65°C to +125°C

Description

M/A-COM's AT90-0413 is a GaAs FET 4-Bit digital attenuator with integral driver. Step size is 1 dB providing a 15 dB attenuation range. This device is in an FQFP-N plastic surface mount package. The AT90- 0413 is suited for applications where accuracy, fast speed, low power consumption and low costs are required.
