Product Details

Description



Features:

Attenuation: 2 dB Steps to 30 dB
Low DC Power Consumption
Small Footprint, JEDEC Package
Integral TTL Driver
50 Ohm Impedance
Test Boards Available
Tape and Reel Packaging Available

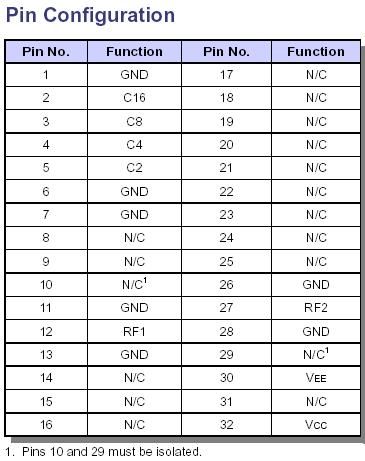

Pinout

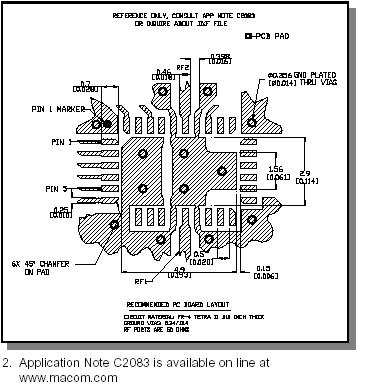

Connection Diagram Connection Diagram


Specifications

Parameter
Absolute Maximum
Max. Input Power
0.05 GHz
0.5 - 2.5 GHz

+27 dBm
+34 dBm
+Vcc
+5.5V
-Vee
-8.5V
Logic Voltages 4
-0.5 to +Vcc + 0.5V
Operating Temperature
-40°C to +85°C
Storage Temperature
-65°C to +125°C



Description

M/A-COM's AT90-0233 is a GaAs FET 4-Bit digital attenuator with integral driver. Step size is 2 dB providing a 30 dB attenuation range. This device is in an FQFP-N plastic surface mount package. The AT90-0233 is suited for use where accuracy, fast speed, very low power consumption and low costs are required.
