AT89C51ID2

Features: • 80C52 Compatible 8051 Instruction Compatible Six 8-bit I/O Ports (64 pins or 68 Pins Versions) Four 8-bit I/O Ports (44 Pins Version) Three 16-bit Timer/Counters 256 bytes Scratch Pad RAM 10 Interrupt Sources With 4 Priority Levels• ISP (In-System Programming) Using Standar...

product image

AT89C51ID2 Picture
See larger image
SeekIC No. : 004290804 Detail

AT89C51ID2: Features: • 80C52 Compatible 8051 Instruction Compatible Six 8-bit I/O Ports (64 pins or 68 Pins Versions) Four 8-bit I/O Ports (44 Pins Version) Three 16-bit Timer/Counters 256 bytes Scratch ...

AT89C51ID2 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AT89C51ID2
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 80C52 Compatible
8051 Instruction Compatible
Six 8-bit I/O Ports (64 pins or 68 Pins Versions)
Four 8-bit I/O Ports (44 Pins Version)
Three 16-bit Timer/Counters
256 bytes Scratch Pad RAM
10 Interrupt Sources With 4 Priority Levels
• ISP (In-System Programming) Using Standard VCC Power Supply
• Integrated Power Monitor (POR/PFD) to Supervise Internal Power Supply
• Boot ROM Contains Low Level Flash Programming Routines and a Default Serial
Loader
• High-speed Architecture
In Standard Mode:
40 MHz (Vcc 2.7V to 5.5V, Both Internal and External Code Execution)
60 MHz (Vcc 4.5V to 5.5V and Internal Code Execution Only)
In X2 Mode (6 Clocks/Machine Cycle)
20 MHz (Vcc 2.7V to 5.5V, Both Internal and External Code Execution)
30 MHz (Vcc 4.5V to 5.5V and Internal Code Execution Only)
• 64K bytes On-chip Flash Program/Data Memory
Byte and Page (128 bytes) Erase and Write
100k Write Cycles
• On-chip 1792 bytes Expanded RAM (XRAM)
Software Selectable Size (0, 256, 512, 768, 1024, 1792 bytes)
768 bytes Selected at Reset for T89C51RD2 Compatibility
• On-chip 2048 bytes EEPROM block for Data Storage
100k Write Cycles
• Dual Data Pointer
• 32 KHz Crystal Oscillator
• Variable Length MOVX for Slow RAM/Peripherals
• Improved X2 Mode with Independant Selection for CPU and Each Peripheral
• Keyboard Interrupt Interface on Port 1
• SPI Interface (Master/Slave Mode)
• 8-bit Clock Prescaler
• Two Wire Interface 400K bit/s
• Programmable Counter Array with:
High Speed Output
Compare/Capture
Pulse Width Modulator
Watchdog Timer Capabilities
• Asynchronous Port Reset
• Full Duplex Enhanced UART with Dedicated Internal Baud Rate Generator
• Low EMI (inhibit ALE)
• Hardware Watchdog Timer (One-time Enabled with Reset-Out), Power-Off Flag
• Power Control Modes: Idle Mode, Power-down Mode
• Power Supply: 2.7V to 5.5V
• Temperature Ranges: Industrial (-40 to +85°C)
• Packages: PLCC44, VQFP44


Pinout

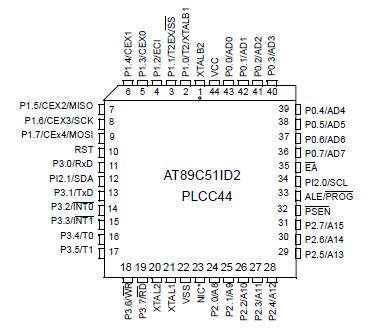

Connection Diagram


Specifications

I = industrial ........................................................-40°C to 85°C
Storage Temperature .................................... -65°C to + 150°C
Voltage on VCC to VSS (standard voltage) .........-0.5V to + 6.5V
Voltage on VCC to VSS (low voltage).................. -0.5V to + 4.5V
Voltage on Any Pin to VSS..........................  -0.5V to VCC + 0.5V
Power Dissipation ........................................................... 1 W(2)


Description

AT89C51ID2 is a high performance CMOS Flash version of the 80C51 CMOS single chip 8-bit microcontroller. It contains a 64 Kbytes Flash memory block for program and for data.The 64 Kbytes Flash memory can be programmed either in parallel mode or in serial mode with the ISP capability or with software. The programming voltage is internally generated from the standard VCC pin.
