Features: ·Supports eight 10M/100M auto-detect Half/Full duplex switch ports with TX/FX interfaces and one universal port. This ninth port can be configured to be a GPSI interface, MII interface, and 1.6Gbps Expansion interface used as proprietary extension bus for cascading to wire -speed 16 port switch applications.
·Built-in 16Kx64 SRAM.
·Supports 2048 MAC addresses table.
·Supports four queues for QOS at fixed 8:4:2:1 rate.
·Supports Port-Based, 802.1p VLAN & IP TOS priority.
·Supports Store & Forward architecture and performs forwarding and filtering at non-blocking full wire speed.
·Supports buffer allocation with 256 bytes per block
·Supports Aging function Enable/Disable.
·Supports per port Single/Dual color mode with Power On auto diagnostic.
·Supports 802.3x Flow Control pause packet for Full Duplex in case buffer is full.
·Supports Back Pressure function for Half Duplex operation in case buffer is full.
·Supports packet length up to 1522 bytes.
·Broadcast Storming Filter function.
·One Trunk Port with 400M bandwidth formed by fixed two 10/100 ports.

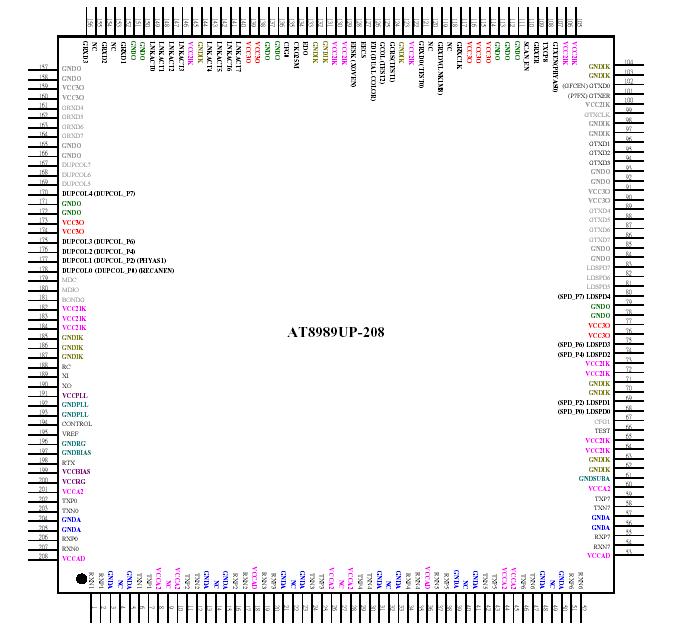

Pinout
Specifications
| Symbol |
Parameter |
Ratings |
Unit |
VCCxx
Vcca2
Vccpll
Vccik
VIN
Vout
TSTG
PD
Tc
ESD |
Power Supply
TX line driver
PLL voltage
Digital core voltage
Input Voltage
Output Voltage
Storage Temperature
Power Dissipation
Temperature of Package Case Surface
ESD Rating |
-0.3 to 3.63
-0.3 to 2.75
-0.3 to 2.75
-0.3 to 2.75
-0.3 to VCC + 0.3
-0.3 to Vcc + 0.3
-55 to 155
4
150
2KV
|
V
V
V
V
V
V
°C
W
°C
V |
DescriptionThe AT8989UP is a high performance, low cost, highly integration (Controller, PHY and Memory) eight-port 10/100 Mbps TX/FX plus one 10/100/Expansion (1.6Gbps) port Ethernet switch controller with all ports supporting 10/100 Mbps Full/Half duplex and 1.6Gbps Expansion port support Full Duplex switch function. The AT8989 UP is intended for applications to stand alone bridge for low cost SOHO market such as 8port plus one 100/10 FX or CPU and 16port Switch.
AT8989UP provides advanced function such as: 802.1p(Q.O.S.), 802.1q(VLAN), Port MAC address Locking, TP Auto MDIX , 25M Crystal & Extra ninth port(Expansion/MII/GPSI) function to meet customer request on Switch demand. The AT8989 UP also supports Back-Pressure in Half-Duplex mode and 802.3x Flow Control Pause packet in Full-Duplex mode to prevent packet lost when buffer full. When Back Pressure is enabled, and there is no receive buffer available for the incoming packet, the AT8989UP will issue a JAM pattern on the receiving port in Half Duplex mode and transmit the 802.3x Pause packet back to receiving end in Full Duplex mode. The built-in 1Mbit SRAM used for packet buffer and address learning table is divided into 256 bytes/block to achieve the optimized memory utilization through complicated link list on packets with various lengths.
AT8989UP also supports Port-Base, VLAN and IP TOS field checking for priority mapping. User can be easy to set as different priority mode in individual port, through a small low-cost micro controller to initialize or on-the-fly to configure. Each output port supports four queues in the way of fixed 8:4:2:1 fairness queuing to fit the bandwidth demand on various types of packet such as Voice, Video and data. 802.1Q, Tag/Untag, and up to 16 groups of VLAN also is supported.
AT8989UP will learn the last 4 bits of VLAN ID. An intelligent address recognition algorithm makes AT8989 UP to recognize up to 2048 different MAC addresses and to enable filtering and forwarding at full wire speed. Port MAC address Locking function is also supported by AT8989UP for customer to use on building Internet access to prevent multiple users share the same single port traffic.
AT8989UP Data Sheet
