AT17F32

• Programmable 33,554,432 x 1-bit Serial Memories Designed to Store Configuration Programs for Field Programmable Gate Arrays (FPGAs)
• 3.3V Output Capability
• 5V Tolerant I/O Pins
• Program Support using the Atmel ATDH2200E System or Industry Third Party Programmers
• In-System Programmable (ISP) via 2-wire Bus
• Simple Interface to SRAM FPGAs
• Compatible with Atmel AT40K and AT94K Devices, Altera FLEX®, APEX™ Devices,Stratix™, Lattice (ORCA®) FPGAs, Spartan®, Virtex® FPGAs
• Cascadable Read-back to Support Additional Configurations or Higher-density Arrays
• Low-power CMOS FLASH Process

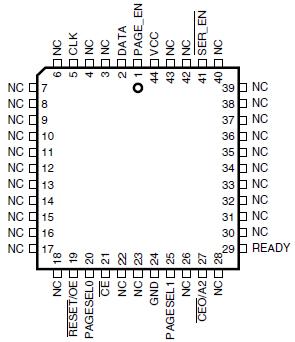

• Available in 44-lead PLCC Package
• Emulation of Atmel's AT24CXXX Serial EEPROMs
• Low-power Standby Mode
• Single Device Capable of Holding 4 Bit Stream Files Allowing Simple System Reconfiguration
• Fast Serial Download Speeds up to 33 MHz
• Endurance: 10,000 Write Cycles Typical
• LHF Package Available (Lead and Halide Free)

The AT17F Series of In-System Programmable Configuration PROMs (Configurators) provide an easy-to-use, cost-effective configuration memory for Field Programmable Gate Arrays. The AT17F Series device is packaged in the 44-lead PLCC, see Table 1.The AT17F Series Configurator uses a simple serial-access procedure to configure one or more FPGA devices.

The AT17F Series Configurators can be programmed with industry-standard programmers,Atmel's ATDH2200E Programming Kit or Atmel's ATDH2225 ISP Cable.
