AT1743

Features: • High-accuracy reference voltage circuit (±1%).• Built-in short-circuit protection circuit.• Built-in Undervoltage Lockout protection.• Internal 2.5V Reference supply.• Variable Dead time provides control over totalApplication• LCD Display• Port...

product image

AT1743 Picture
See larger image
SeekIC No. : 004289278 Detail

AT1743: Features: • High-accuracy reference voltage circuit (±1%).• Built-in short-circuit protection circuit.• Built-in Undervoltage Lockout protection.• Internal 2.5V Reference sup...

AT1743 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AT1743
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• High-accuracy reference voltage circuit (±1%).
• Built-in short-circuit protection circuit.
• Built-in Undervoltage Lockout protection.
• Internal 2.5V Reference supply.
• Variable Dead time provides control over total



Application

• LCD Display
• Portable equipment

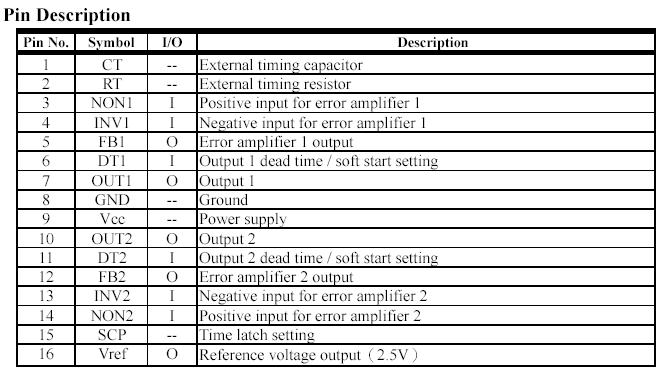

Pinout

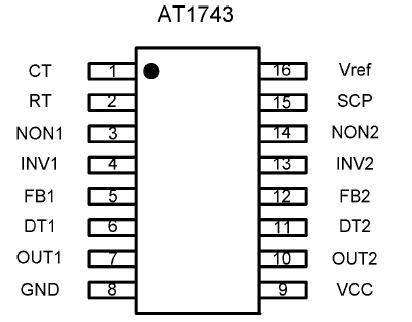

Connection Diagram Connection Diagram


Specifications

Parameter
Symbol
Limits
Unit
Power supply voltage
Vcc
 30
V
Power dissipation
Pd
450*1
mW
Operating temperture
Topr
-30~+85
Storage temperture
Tstg
-55~+125
Output current
Io
120*2
mA
Output voltage
Vo
30
V



Description

The AT1743 is 2-channel PWM switching regulator controllers that contains an on-chip 2.5V reference, two error amplifier, an adjustable oscillator, two dead-time comparators, undervoltage lockout circuitry and 2 common-emitter output. AT1743 is idea for step-up, step-down, and inverting converter.
