AT17F080

Features:

• Programmable 4,194,304 x 1 and 8,388,608 x 1-bit Serial Memories Designed to Store Configuration Programs for Field Programmable Gate Arrays (FPGAs)
• 3.3V Output Capability
• 5V Tolerant I/O Pins
• Program Support using the Atmel ATDH2200E System or Industry Third Party Programmers
• In-System Programmable (ISP) via 2-wire Bus
• Simple Interface to SRAM FPGAs
• Compatible with Atmel AT40K and AT94K Devices, Altera® FLEX®, APEX™ Devices, Lucent® ORCA® FPGAs, Xilinx® XC3000, XC4000, XC5200, Spartan®, Virtex™ FPGAs, Motorola® MPA1000 FPGAs
• Cascadable Read-back to Support Additional Configurations or Higher-density Arrays
• Low-power CMOS FLASH Process
• Available in 6 mm x 6 mm x 1 mm 8-lead LAP (Pin-compatible with 8-lead SOIC/VOIC Packages), 20-lead PLCC, 44-lead PLCC and 44-lead TQFP Packages
• Emulation of Atmel's AT24CXXX Serial EEPROMs
• Low-power Standby Mode
• Single Device Capable of Holding 4 Bit Stream Files Allowing Simple System Reconfiguration
• Fast Serial Download Speeds up to 33 MHz
• Endurance: 5,000 Write Cycles Typical
• LHF Package Available (Lead and Halide Free)

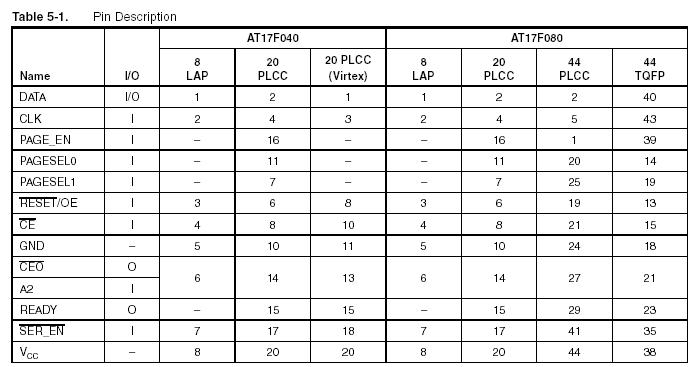

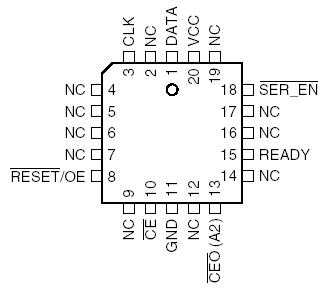

Pinout




Specifications

Operating Temperature........................... -40°C to +85°C Storage Temperature ........................... -65°C to +150°C Voltage on Any Pin with Respect to Ground ........................-0.1V to VCC +0.5V Supply Voltage (VCC) ...................................-0.5V to +4.0V Maximum Soldering Temp. (10 sec. @ 1/16 in.)........260°C ESD (RZAP = 1.5K, CZAP = 100 pF)............................ 2000V

Description

The AT17F Series of In-System Programmable Configuration PROMs (Configurators) provide an easy-to-use, cost-effective configuration memory for Field Programmable Gate Arrays. The AT17F Series device is packaged in the 8-lead LAP, 20-lead PLCC, 44-lead PLCC and 44-lead TQFP, see Table 1-1. The AT17F Series Configurator uses a sim-ple serial-access procedure to configure one or more FPGA devices.

The AT17F Series Configurators can be programmed with industry-standard programmers, Atmel's ATDH2200E Programming Kit or Atmel's ATDH2225 ISP Cable.
