AT17CxxxA

Features: EE Programmable 65,536 x 1, 131,072 x 1 and 262,144 x 1 bit Serial Memories Designed to Store Configuration Programs for Programmable Gate Arrays Simple Interface to SRAM FPGAs Requires Only One User I/O Pin Able to Configure with EPF6000 and EPF8000, Flex 10K FPGAs Cascadable To Supp...

product image

AT17CxxxA Picture
See larger image
SeekIC No. : 004289334 Detail

AT17CxxxA: Features: EE Programmable 65,536 x 1, 131,072 x 1 and 262,144 x 1 bit Serial Memories Designed to Store Configuration Programs for Programmable Gate Arrays Simple Interface to SRAM FPGAs Requires ...

AT17CxxxA Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AT17CxxxA
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

EE Programmable 65,536 x 1, 131,072 x 1 and 262,144 x 1 bit Serial Memories Designed
   to Store Configuration Programs for Programmable Gate Arrays
Simple Interface to SRAM FPGAs Requires Only One User I/O Pin
Able to Configure with EPF6000 and EPF8000, Flex 10K FPGAs
Cascadable To Support Additional Configurations or Future Higher-Density Arrays
   (17C128/256 only)
Low-Power CMOS EEPROM Process
Programmable Reset Polarity
Available in Industry-Standard Pin-Compatible PLCC Package
In-System Programmable via 2-Wire Bus
Emulation of 24CXX Serial EEPROMs
Available in 3.3V and 5V Versions

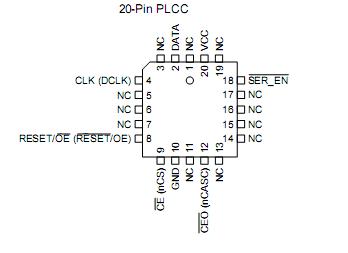

Pinout

Connection Diagram


Specifications

Operating Temperature..................................-55°C to +125°C

Storage Temperature.....................................-65°C to +150°C

Voltage on Any Pin
with Respect to Ground.............................-0.1V to VCC +0.5V

Supply Voltage (VCC).......................................-0.5 V to + 7.0V

Maximum Soldering Temp. (10 sec. @ 1/16 in.).............260°C

ESD (RZAP = 1.5K, CZAP = 100 pF).................................2000V


Description

The AT17C65/128/256A and AT17LV65/128/256A (AT17A Series) FPGA Configuration EEPROMS (Configurator) provide an easy-to-use, cost-effective configuration memory for Field Programmable Gate Arrays. The AT17A Series is packaged in the popular 20-pin PLCC. The AT17A Series family uses a simple serial-access provides to configure one or more FPGA devices. The AT17A Series organization supplies enough memory to configure one or multiple smaller FPGAs. Using a special feature of the AT17A Series, the user can select the polarity of the reset function by programming a special EEPROM bit.

The AT17A Series is pin compatible with the industry standard configurator, and can be programmed with industry standard programmers.
