AT17C002A

Features:

• Serial EEPROM Family for Configuring FLEX^® Devices
• Simple Interface to SRAM FPGAs
• EE Programmable 2-Mbit Serial Memories Designed to Store Configuration Programs for Field Programmable Gate Arrays (FPGAs)
• Cascadable Read Back to Support Additional Configurations or Future Higher-density Arrays
• Low-power CMOS EEPROM Process
• Programmable Reset Polarity
• Available in the Space-efficient Surface-mount PLCC Package
• In-System Programmable via 2-wire Bus
• Emulation of Atmel's AT24CXXX Serial EEPROMs
• Available in 3.3V ± 5% LV and 5V ± 5% C Versions
• System-friendly READY Pin
• Replacement for AT17C/LV002A

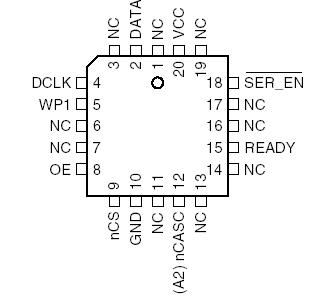

Pinout




Specifications

Operating Temperature............................ -55°C to +125°C

Storage Temperature .............................. -65°C to +150°C

Voltage on Any Pin with Respect to Ground ...........................-0.1V to VCC +0.5V

Supply Voltage (VCC) ......................................-0.5V to +7.0V

Maximum Soldering Temp. (10 sec. @ 1/16 in.)............260°C

Description

The AT17C002A and AT17LV002A (high-density AT17A Series) FPGA Configuration EEPROMs(configurators) provide an easy-to-use, cost-effective configuration memory for programming Altera FLEX devices. The AT17A Series is packaged in the popular 20-lead PLCC and the 32-lead TQFP. The AT17A Series family uses a simple serial-access procedure to configure one or more FPGA devices. The AT17A Series organization supplies enough memory to con-figure one or multiple smaller FPGAs. Using a feature of the AT17A Series, the user can select the polarity of the reset function by programming internal EEPROM bytes. The AT17A parts generate their own internal clock and can be used as a system "master" for loading the FPGA devices.

The Atmel devices also support a system-friendly READY pin. The READY pin is used to simplify system power-up considerations.

The AT17A Series Configurators can be programmed with industry-standard programmers or Atmel's ATDH2200E Programming Kit.
