AT17C002

Features:

• EE Reprogrammable 2,097,152 x 1-bit Serial Memories Designed to Store Configuration Programs for Field Pro-grammable Gate Arrays (FPGAs)
• In-System Programmable via 2-wire Bus
• Simple Interface to SRAM FPGAs
• Compatible with Atmel AT6000, AT40K and AT94K Devices, Altera FLEX^®, APEX™ Devices, Lucent ORCA^® FPGAs, Xilinx XC3000™, XC4000™, XC5200™, Spartan^®, Virtex™ FPGAs
• Cascadable Read Back to Support Additional Configurators or Higher-density Arrays
• Low-power CMOS EEPROM Process
• Programmable Reset Polarity
• Available in 6 mm x 6 mm x 1 mm 8-lead LAP (Pin-compatible with 8-lead SOIC/VOIC Packages), 20-lead PLCC, 44-lead PLCC and 44-lead TQFP Packages (Pin-compatible Across Product Family)
• Emulation of Atmel's AT24CXXX Serial EEPROMs
• Available in 3.3V ± 10% LV and 5V ± 5% C Versions
• System-friendly READY Pin
• Low-power Standby Mode
• Replacement for AT17C/LV020

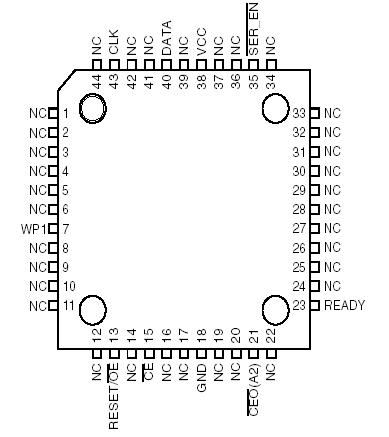

Pinout

Specifications

Operating Temperature................... -55°C to +125°C Storage Temperature .......................... -65°C to +150°C Voltage on Any Pin with Respect to Ground .......................-0.1V to VCC +0.5V Supply Voltage (VCC) ..................................-0.5V to +7.0V Maximum Soldering Temp. (10 sec. @ 1/16 in.).......260°C ESD (RZAP = 1.5K, CZAP = 100 pF)........................... 2000V

Description

The AT17C002 and AT17LV002 (high-density AT17 Series) FPGA Configuration EEPROMs (Configurators) provide an easy-to-use, cost-effective configuration memory for programming Field Programmable Gate Arrays. The AT17 Series is packaged in the popular 8-lead LAP, 20-lead PLCC, 44-lead PLCC and the 44-lead TQFP. The AT17 Series family uses a simple serial-access procedure to configure one or more FPGA devices. The user can select the po-larity of the reset function by programming four EEPROM bytes. These devices support a write protection mode and a systemfriendly READY pin, which signifies a "good" power level to the FPGA and can be used to ensure reliable system power-up.

The AT17 Series Configurators can be programmed with industry-standard programmers, Atmel's ATDH2200E Pro-gramming System and Atmel's ATDH2225 ISP Cable.
