AT1796

·3.3V and 5V output versions
·Guaranteed 3A output load current
·Requires small number ofexternal components
·Excellent line and load regulation
·150kHz fixed frequency internal oscillator
·Built-in TTL On/Off Control
·Low power standby mode, IQ typically 80uA
·Built-in current limit protection
·Built-in thermal shutdown circuit.
·Operating voltage: 4.5V~25V
·TO-265 package

The AT1796 series of regulators are step-down (buck) DC/DC converter, capable of driving a 3A load with excellent line and load regulation.

Requiring a minimum number of external components, these regulators AT1796 are simple to use .

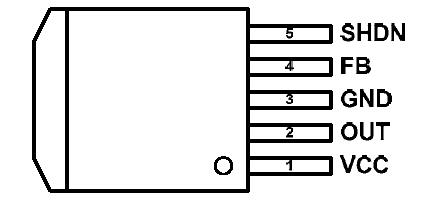

The AT1796 series operates at a switching frequency of 150kHz.Available in a standard 5-lead TO-263 surface mount package. It include a guaranteed ±4% tolerance on output voltage under specified input voltage and output load conditions, and ±15% on the oscillator frequency.
