AT16373

Features:

` Fastest Propagation Speeds in the Industry T<sub>PD (F grade)</sub> = 2.5 ns, T<sub>PD (G grade)</sub> = 2.0 ns
` Maximum derating for capacitive loads 1.5ns/100 pF (F grade) and 1.1ns/100 pF (G grade)
` Very low ground bounce < 0.6V @ V<sub>CC</sub>=5.00V, T<sub>a</sub>=25°C
` Excellent noise rejection
` Typical output skew 0.25ns
` Bus Hold circuitry to retain last active state during Tri-state^TM
` Available in SSOP and TSSOP packages

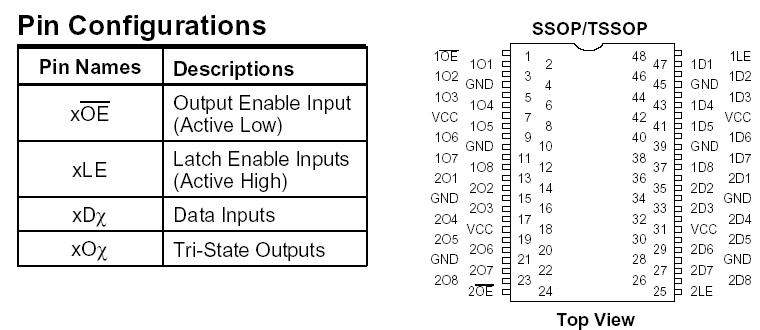

Pinout




Specifications

Operating Temperature.........................0°C to +70°C Storage Temperature ...................... -65°C to +150°C Voltage on any Pin with Respect to Ground.......................-2.0V to +7.0V(1) Maximum Operating Voltage...................................6.0V

Description

    Atmel's AT16373 devices provide maximum speed in temporary data storage. They can be operated as either two separate 8 bit latches or as a single 16-bit latch by use of the output enable and the latch enable. The AT-16373 has very low ground bounce and excellent input noise rejection, giving the user stable signals in a high speed environment. AT16373 can drive very large loads while operating in a high speed transparent mode.
