AT16245

Features:

` Fastest Propagation Speeds in the Industry T<sub>PD (F grade)</sub> = 2.5 ns, T<sub>PD (G grade)</sub> = 2.0 ns
` Maximum Derating for Capacitive Loads 1.5ns/100pF (F grade) and 1.1ns/100pF (G grade)
` Very Low Ground Bounce <0.6V @ V<sub>CC</sub>=5.00 V, T<sub>a</sub>=25°C
` Excellent Noise Rejection ` Typical Output Skew 0.25ns
` Bus Hold Circuitry to Retain Last Active State During Tri-State^TM
` Available in SSOP and TSSOP Packages

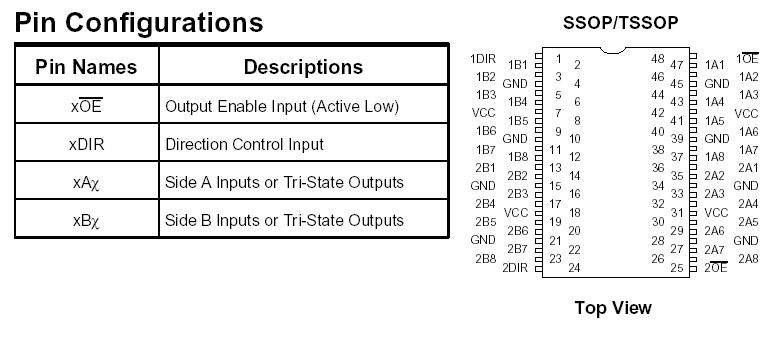

Pinout




Specifications

Operating Temperature..................................0°C to +70°C Storage Temperature .............................. -65°C to +150°C Voltage on any Pin with Respect to Ground..............................-2.0V to +7.0V(1) Maximum Operating Voltage...........................................6.0V

Description
