Features:

• High efficiency
• Using external P and N channel MOSFET
• Maximum Duty 100%
• Oscillation frequency 600KHz
• Soft Start by an external capacity
• Output voltage accuracy ±2%
• Built-in ON/OFF Function
• Stand-by current max. 10µA
• Quiescent Current 1mA
• Input voltage: 2.5V ~7.0V



Application

• Power Supply for portable devices


Pinout

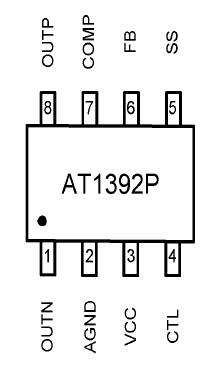

  Connection Diagram
  Connection Diagram


Specifications

Parameter
Condition
Rated Value
Unit
Min.
Max.
Power supply voltage
-
-
+7
V
Source Average Current of OUT
-
-50
mA
Sink Average Current of OUT
-
-
50
mA
Source Peak Current of OUT
-
-
-200
mA
Sink Peak Current of OUT
-
-
200
mA
Input Voltage to Error Amplifier
-
-
6.5
V
Continuous power dissipation
TSSOP8(Ta=+25)
-
500
mW
Operating temperature
-
-30
+85
Storage temperature
-
-55
+125



Description

The AT1392 provides complete control and protection for a DC/DC converter optimized for high-performance micro-processor applications. It is designed to drive one P-Channel and one NChannel in a buck topology. The AT1392 integrates all of the control, output adjustment into a single package. The output voltage of the converter can be precisely regulated with a maximum tolerance of ±2% over temperature and line voltage variations. The AT1392 is a family of low-noise synchronous step-down DC/DC converters that is ideally suited for systems powered from a 1-cell Li-ion battery or from a 3- cell to 4-cell NiCd, NiMH, or alkaline battery. It can also be used to USB-Based power system.
