AT1303

Features:

• Low Start-Up from below 1.0V
• Low Input Quiescent Current(Switching Off Current for 3.3V output) : 60µA (typ.)
• High Output Voltage Accuracy ±2.0%
• Small Number of External Components needed
• Output Voltage from 1.2V to 5.5V
• Space Saving MSOP-8 or TSSOP8 package


Application

• Personal Digital Assistant (PDA)
• Digital Camera
• Portable Audio (MP3)
• Electronic Game

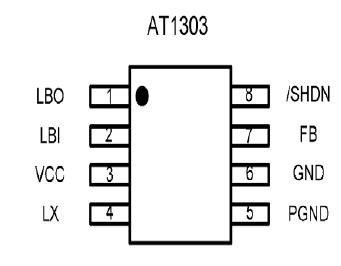

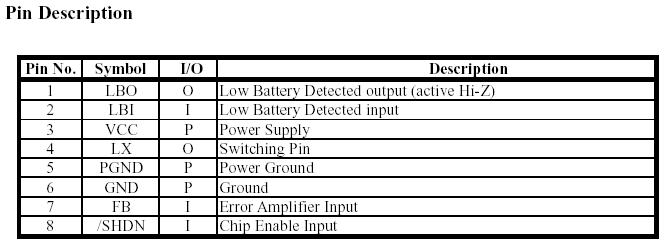

Pinout




Specifications

Parameter	Symbol	Condition	Rated Value		Unit
			Min.	Max.
Power supply voltage	VCC	-	-	6.0	V
LX pin voltage	VLX	-	-	6.0	V
LX pin output current	ILX	-	-	1.7	mA
Allowable dissipation	PD	TSSOP8	-	430	mW
	PD	MSOP8	-	330	mW
Operating temperature	TOP	-	-30	+85
Storage temperature	Tstg	-	-55	125

Description

The AT1303 is a high efficiency current mode PWM step-up DC/DC converter with light load control for applications using battery-powered system. The device will automatically skip switching cycles under light load condition to maintain high efficiency at light load. The small MSOP-8 or TSSOP-8 packages make the AT1303 an ideal choice of DC/DC Converter for space conscious applications.
