Features:

• High efficiency (min. 90% On IO=300mA~600mA)
• Using external P and N channel MOSFET
• Supports for down and up/down Zeta conversion
• Maximum Duty 100%
• Oscillation frequency 300KHz or 600KHz
• Soft Start by an external capacity
• Output voltage accuracy ±2%
• Built-in ON/OFF Function
• Built-in Short-circuit Protection
• Stand-by current max. 10µA
• Quiescent Current 1mA
• Monitor the input voltage and 3V3 output
• Input voltage: 2.5V ~7.0V



Application

• Slim-Type CD-ROM/DVD-ROM/CD-RW
• Power Supply for portable devices
• Main or Sub Power source foe notebook computers and peripherals.



Pinout

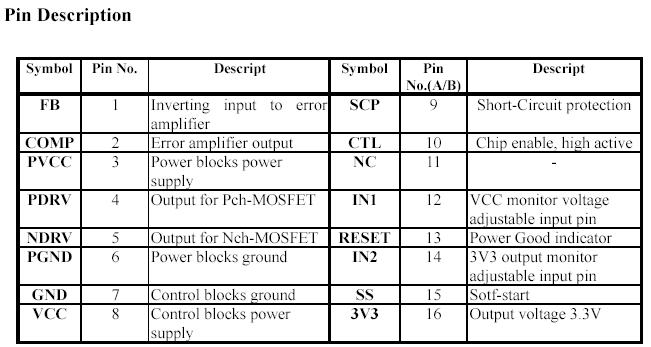

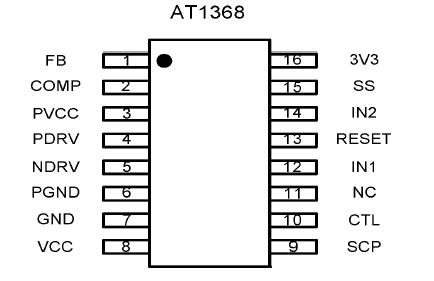

  Connection Diagram  Connection Diagram


Specifications

Parameter
Condition
Rated Value
Unit
Min.
Max.
Power supply voltage
-
-
+8
V
Source Average Current of PDRV,
NDRV
-
-
-50
mA
Sink Average Current of PDRV,
NDRV
-
-
50
mA
Source Peak Current of PDRV,
NDRV
-
-
-200
mA
Sink Peak Current of PDRV,
NDRV
-
-
200
mA
Input Voltage to Error Amplifier
-
-
6.5
V
Continuous power dissipation
SSOP16(Ta=+25)
-
560
mW
Operating temperature
-
-30
+85
Storage temperature
-
-55
125



Description

The AT1368 provides complete control and protection for a DC/DC converter optimized for high-performance micro-processor applications. AT1368 is designed to drive one P-Channel and one NChannel MOSFETs in a synchronous-rectified buck topology. The AT1368 integrates all of the control, output adjustment, monitoring and protection functions into a single package. The output voltage of the converter can be precisely regulated with a maximum tolerance of ±2% over temperature and line voltage variations. The AT1368 is a family of low-noise synchronous stepdown DC/DC converters that is ideally suited for systems powered from a 1-cell Li-ion battery or from a 3-cell to 4-cell NiCd, NiMH, or alkaline battery. AT1368 can also be used to USB-Based power system.
