Output frequency range: 8.33MHz to 200MHz
Input frequency range: 6.25MHz to 125MHz
2.5V or 3.3V operation
Split 2.5V / 3.3V outputs
±2%( max ) Output duty cycle variation
12 Clock outputs: drive up to 24 clock lines
One feedback output
Three reference clock inputs: LVPECL or LVCMOS
300pS ( max ) output-output skew
Phase-locked loop (PLL) bypass mode
'SpreadTrak'
Output enable/disable
Pin-compatible with CY29773, MPC9773 and MPC973
Industrial temperature range: 40to +85
52pin 1.0mm TQFP package
RoHS Compliance
Parameter | Description | Condition | Min | Max | Unit |
VDD | DC Supply Voltage | 0.3 | 5.5 | V | |
VDD | DC Operating Voltage | Functional | 2.375 | 3.465 | V |
VIN | DC Input Voltage | Relative to VSS | 0.3 | VDD+ 0.3 | V |
VOUT | DC Output Voltage | Relative to VSS | 0.3 | VDD+ 0.3 | V |
VTT | Output termination Voltage | VDD ÷2 | V | ||
LU | Latch-up Immunity | Functional | 200 | - | mA |
RPS | Power Supply Ripple | Ripple Frequency < 100 kHz | 150 | mVp-p | |
TS | Temperature, Storage | Non-functional | 65 | +150 | |
TA | Temperature, Operating Ambient | Functional | 40 | +85 | |
TJ | Temperature, Junction | Functional | +150 | ||
ØJC | Dissipation, Junction to Case | Functional | 23 | /W | |
ØJA | Dissipation, Junction to Ambient | Functional | 55 | /W | |
ESDH | ESD Protection (Human Body Model) | 2000 | V | ||
FIT | Failure in Time | Manufacturing test |
10 |
ppm |

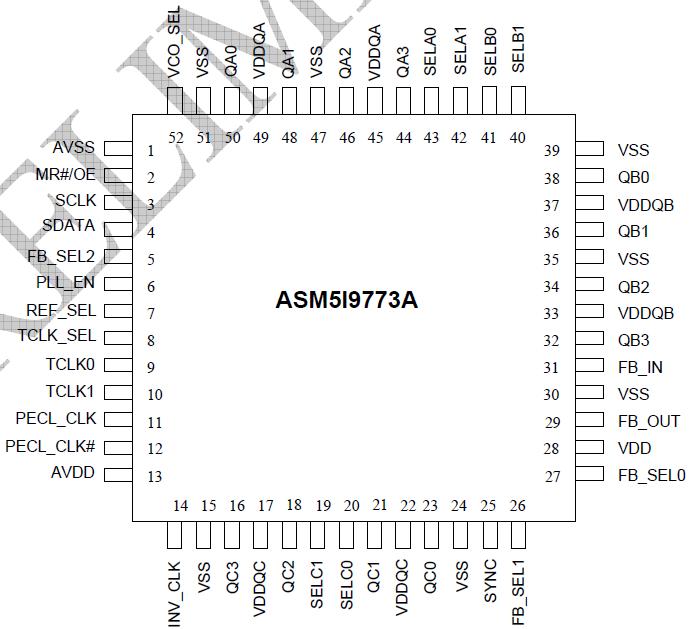

The ASM5I9773A is a low-voltage high-performance 200-MHz PLL-based zero delay buffer designed for high speed clock distribution applications.
The ASM5I9773A features one LVPECL and two LVCMOS reference clock inputs and provides 12 outputs partitioned in three banks of four outputs each. Each bank divides the VCO output per SEL(A:C) settings (see Table 2. Function Table (Configuration Controls)). These dividers allow output-to-input ratios of 8:1, 6:1, 5:1, 4:1, 3:1, 8:3, 5:2, 2:1, 5:3, 3:2, 4:3, 5:4, 1:1, and 5:6. Each LVCMOS-compatible output can drive 50 series- or parallel-terminated transmission lines. For series-terminated transmission lines, each output of ASM5I9773A can drive one or two traces, giving the device an effective fanout of 1:24.
The PLL is ensured stable, given that the VCO is configured to run between 200 MHz to 500 MHz. This allows a wide range of output frequencies, from 8 MHz to 200 MHz. For normal operation, the external feedback input FB_IN is connected to the feedback output FB_OUT. The internal VCO is running at multiples of the input reference clock set by the feedback divider (see Table 1. Frequency Table).
When PLL_EN is LOW, PLL is bypassed and the reference clock directly feeds the output dividers. This mode is fully static and the minimum input clock frequency specification does not apply.
