Product Details

Description



Features:

`AS6UA25616
` Intelliwatt(TM) active power circuitry
`Industrial and commercial temperature ranges available
` Organization: 262,144 words x 16 bits
` 2.7V to 3.6V at 55 ns
`2.3V to 2.7V at 70 ns
` Low power consumption: ACTIVE
- 114 mW at 3.6V and 55 ns
- 68 mW at 2.7V and 70 ns
` Low power consumption: STANDBY
- 72 W max at 3.6V
- 41 W max at 2.7V
` 1.2V data retention
` Equal access and cycle times
` Easy memory expansion with CS, OE inputs
` Smallest footprint packages
- 48-ball FBGA
- 400-mil 44-pin TSOP II
` ESD protection 2000 volts
` Latch-up current 200 mA




Pinout

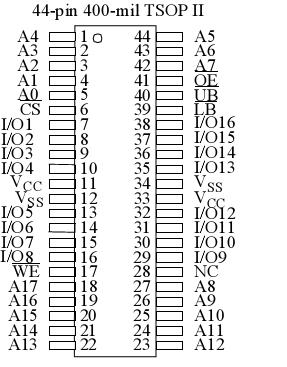

Connection Diagram


Specifications

Parameter Device Symbol Min Max Unit
Voltage on VCC relative to VSS   VtIN -0.5 VCC+ 0.5 V
Voltage on any I/O pin relative to GND   VtI/O 0.5   V
Power dissipation   PD 1.0 W
Storage temperature (plastic)   Tstg 65 +150
Temperature with VCCapplied
   Tbias 55 +125
DC output current (low)   IOUT 20 mA
