AS5C512K8F-17_H

Features: ·Ultra High Speed Asynchronous Operation·Fully Static, No Clocks·Multiple center power and ground pins for improvednoise immunity· Easy memory expansion with CE\ and OE\options· All inputs and outputs are TTL-compatible· Single +5V Power Supply +/- 10%·Data Retention Functionality Testin...

product image

AS5C512K8F-17_H Picture
See larger image
SeekIC No. : 004288406 Detail

AS5C512K8F-17_H: Features: ·Ultra High Speed Asynchronous Operation·Fully Static, No Clocks·Multiple center power and ground pins for improvednoise immunity· Easy memory expansion with CE\ and OE\options· All inputs...

AS5C512K8F-17_H Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AS5C512K8F-17_H
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Ultra High Speed Asynchronous Operation
·Fully Static, No Clocks
·Multiple center power and ground pins for improved noise immunity
· Easy memory expansion with CE\ and OE\options
· All inputs and outputs are TTL-compatible
· Single +5V Power Supply +/- 10%
·Data Retention Functionality Testing (Contact Factory)
·Cost Efficient Plastic Packaging
· Extended Testing Over -55oC  to  +125oC for plastics
·Plastic 36 pin PSOJ is fully compatible with the Ceramic 36 pin SOJ
· 3.3V Future Offering


Pinout

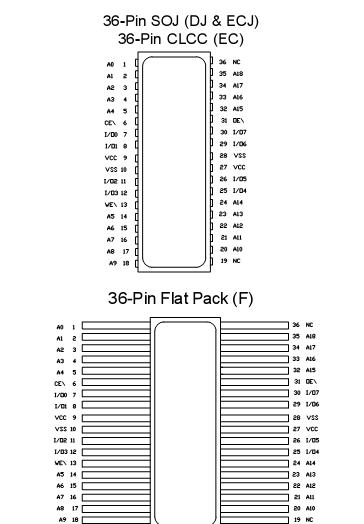

Connection Diagram


Specifications

Voltage on Vcc Supply Relative to Vss
Vcc  .......................................................................-.5V to +7.0V
Storage Temperature (Plastic)......................-65°C to +150°C
Storage Temperature (Ceramic)...................-55°C to +125°C
Short Circuit Output Current (per I/O).............................20mA
Voltage on any Pin Relative to Vss.....................-.5V to Vcc+1V
Maximum Junction Temperature**..............................+150°C
Power Dissipation ................................................................1W


Description

The AS5C512K8F-17_H is a high speed SRAM.  It offers flexibility in high-speed memory applications, with chip enable (CE\) and output enable (OE\) capabilities.  These features can place the outputs in High-Z for additional flexibility in system design.

Writing to the AS5C512K8F-17_H is accomplished when write enable (WE\) and CE\ inputs are both LOW. Reading is accomplished when WE\emains HIGH and CE\ and OE\ go LOW.

As a option, the AS5C512K8F-17_H can be supplied offering  a reduced power tandby mode, allowing system designers to meet low standby power equirements.  This device operates from a single +5V power supply and all inputs and outputs are fully TTL-compatible.

The AS5C512K8F-17_H offers the convenience and reliability of the AS5C512K8 SRAM and has the cost advantage of a durable plastic.The AS5C512K8F-17_H is footprint compatible with 36 pin  CSOJ package of the  SMD 5692-95600.
