AS5C2568

Features: ·Access Times: 12, 15, & 20ns· Fast output enable (tDOE) for cache applications· Low active power: 400 mW (TYP)· Low power standby· Fully static operation, no clock or refresh required· High-performance, low-power CMOS double-metal proces· Single +5V (±10%) Power Supply· Easy memory ...

product image

AS5C2568 Picture
See larger image
SeekIC No. : 004288400 Detail

AS5C2568: Features: ·Access Times: 12, 15, & 20ns· Fast output enable (tDOE) for cache applications· Low active power: 400 mW (TYP)· Low power standby· Fully static operation, no clock or refresh required...

AS5C2568 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AS5C2568
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/8/14

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Access Times: 12, 15, & 20ns
· Fast output enable (tDOE) for cache applications
· Low active power:  400 mW (TYP)
· Low power standby
· Fully static operation, no clock or refresh required
· High-performance, low-power CMOS double-metal proces
· Single +5V (±10%) Power Supply
· Easy memory expansion with CE\
· All inputs and outputs are TTL compatible

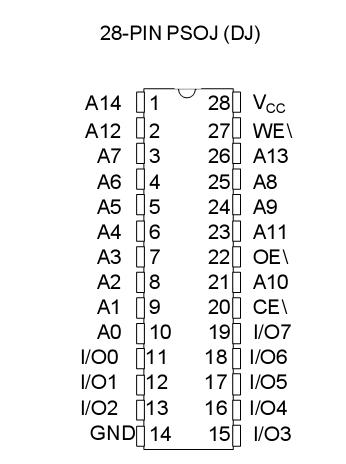

Pinout

Connection Diagram


Specifications

Voltage on Any Input or DQ Relative to Vss.......................-0.5V to Vcc +0.5V
Voltage on Vcc Supply Relative to Vss............................................-1V to +7V
Storage Temperature......................................................-65 °C to +150 °C
Power Dissipation.....................................................................................1W
Short Circuit Output Current..................................................................20mA
Lead Temperature (soldering 10 seconds)......................................+260 °C
Max. Junction Temperature..............................................................+175 °C


Description

The Austin Semiconductor SRAM family employs high-speed, low power CMOS designs using a four-transistor memory cell.  These SRAMs AS5C2568 are fabricated using double-layer metal, double-layer polysilicon technology.

For flexibility in high-speed memory applications, Aus-tin Semiconductor offers chip enable (CE\) and output enable (OE\) capability.  These enhancements can place the outputs in High-Z for additional flexibility in system design.

Writing to AS5C2568 is accomplished when write enable (WE\) and CE\ inputs are both LOW.  Reading is accom-plished when WE\ remains HIGH and CE\ and OE\ go LOW.The device offers a reduced power standby mode when dis-abled.  AS5C2568 allows system designs to achieve low standby power requirements.

AS5C2568 operate from a single +5V power supply and all inputs and outputs are fully TTL compatible.
