AS1746

PinoutDescriptionThe AS1746 is a low on-resistance (RON), low-voltage, dual-single-pole/double-throw (SPDT) analog switch designed to operate from a single +1.8 to +5.5V supply. The device features a 0.5 (max) RON for normally closed (NC) switches and a 0.6 (max) RON for normally open (NO) switch...

product image

AS1746 Picture
See larger image
SeekIC No. : 004288180 Detail

AS1746: PinoutDescriptionThe AS1746 is a low on-resistance (RON), low-voltage, dual-single-pole/double-throw (SPDT) analog switch designed to operate from a single +1.8 to +5.5V supply. The device features...

AS1746 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AS1746
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout

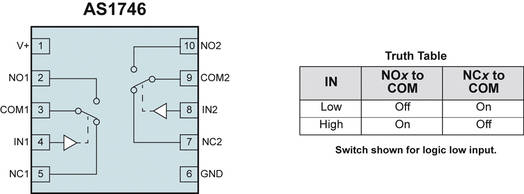

Connection Diagram


Description

The AS1746 is a low on-resistance (RON), low-voltage, dual-single-pole/double-throw (SPDT) analog switch designed to operate from a single +1.8 to +5.5V supply.

The device features a 0.5 (max) RON for normally closed (NC) switches and a 0.6 (max) RON for normally open (NO) switches using a +2.7V supply. Additionally the AS1746 offers excellent matching between channels of only 0.06 and the flatness over signal Range of 0.15 enables the device to provide a THD+N of only 0.025%.

The AS1746 features break-before-make switching (2ns) with tON = 50ns and tOFF = 30ns (using a +2.7V supply).

The digital logic inputs of AS1746 are 1.8V logic-compatible with +2.7 to +3.3V supplies.

The AS1746 is available in a TDFN-10 (3x3mm) package and a WL-CSP-10 package.
