Series: -
Type: Class AB
Output Type: 1-Channel (Mono)
Mounting Type: Surface Mount
Features: Depop, Differential Inputs, Short-Circuit and Thermal Protection, Shutdown
Voltage - Supply: 2.7 V ~ 5.5 V
Packaging: Tube
Supplier Device Package: 8-MSOP
Package / Case: 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Manufacturer: ams
Max Output Power x Channels @ Load: 1.6W x 1 @ 4 Ohm
Features: `2.7 to 5.5V (VDD) Single-Supply Operation
`Very High PSRR: Greater Than 65dB @ 217Hz
`THD+Noise: 1.6W into 4 at 1%
`No Output Coupling Capacitors Required
`External Gain Configuration Capability
`Low-Power Shutdown Mode: 10nA
`Click and Pop Suppression
`Over-Temperature and Over-Current Protection
`Operating Temperature Range: -40 to +85°C
`8-pin MSOP PackagePinout
Specifications
| Parameter |
Min |
Max |
Unit |
Comments |
| VDD to GND |
-0.3 |
+7 |
V |
|
| Any Other Pin to GND |
-0.3 |
VDD + 0.3 |
V |
|
| Input Current (Latchup Immunity) |
-100 |
100 |
mA |
JEDEC 78 |
| Continuous Power Dissipation |
|
362 |
mW |
TAMB = 70ºC,
Derate 4.5mW/ºC Above +70ºC |
| Electro-Static Discharge (ESD) |
-40 |
1 |
kV |
HBM MIL-Std883E 3015.7 Methods |
| Electro-Static Discharge (ESD) |
-65 |
+85 |
ºC |
|
| Storage Temperature Range |
|
+150 |
ºC |
|
| Soldering Conditions |
|
+260 |
ºC |
The reflow peak soldering temperature
(body temperature) specified is in
accordance with IPC/JEDEC J-STD-
020C "Moisture/Reflow Sensitivity
Classification for Non-Hermetic Solid
State Surface Mount Devices". |

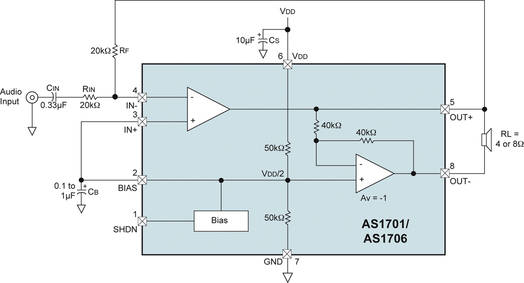

DescriptionThe AS1701 and AS1706 are 1.6W bridged audio power amplifiers that provide excellent circuit reliability, providing a very low-cost solution by eliminating external components when used with 2.7 to 5.5V-powered circuits. AS1701 have superb total harmonic distortion (THD) at highpower output and excellent power supply rejection with 4- and 8 Ohm-loads. Integrated over-temperature and over-current protection circuitry switch the devices off in case of an output short-circuit. A digital input allows AS1701 to automatically switch into shutdown mode. Click- and pop suppression circuitry reduces audible clicks and pops during power-up and shutdown. The gain (AV) of the devices is controlled using external resistors. The AS1701/AS1706 are pin compatible with the LM4891 and the MAX9716.
The AS1701/AS1706 are available in an 8-pin MSOP package.
AS1701 Data Sheet
