AS1710

PinoutDescriptionThe AS1710/12 are low-offset, high-output CMOS op amps that deliver 200mA of peak output current from a single supply (2.7 to 5.5V). These devices were specifically designed to drive typical headset levels (32), as well as bias RF power amplifi-ers for wireless handset applicati...

product image

AS1710 Picture
See larger image
SeekIC No. : 004288170 Detail

AS1710: PinoutDescriptionThe AS1710/12 are low-offset, high-output CMOS op amps that deliver 200mA of peak output current from a single supply (2.7 to 5.5V). These devices were specifically designed to dr...

AS1710 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AS1710
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/30

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout

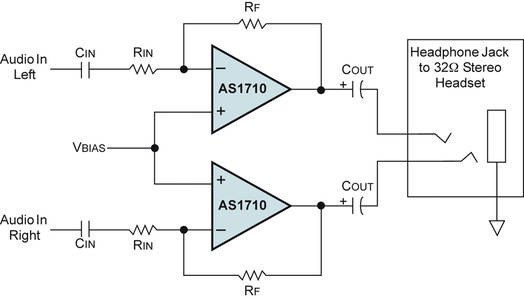

Connection Diagram


Description

The AS1710/12 are low-offset, high-output CMOS op amps that deliver 200mA of peak output current from a single supply (2.7 to 5.5V).

These devices were specifically designed to drive typical headset levels (32), as well as bias RF power amplifi-ers for wireless handset applications.

The devices are available as the following standard products:

Model

Description

Package

AS1710A

Single Op Amp with Shutdown

SC70-6

AS1710B

Single Op Amp

SC70-5

AS1712A

Quad Op Amp with Shutdown

TQFN-16 (3x3x0.8mm)

These rail-to-rail I/O, wide-bandwidth amplifiers exhibit a high slew rate of 10V/ s and a gain-bandwidth product of 10MHz.

The integrated shutdown feature (not included in B ver-sions) drives the output low.

AS1710 operate over the entire automotive tem-perature range (-40°C to +125°C).
