APW7095A

Features: · Supports for synchronous rectification (CH1, CH2 and CH5)· Supports for down or up-down Zeta conversions (CH1 and APW7095 CH2)· Supports for up, flyback or up-down SEPIC conversions (APW7095A CH2, CH3, APW7095 CH4, CH5 and CH6)· Supports for Inverting conversion (APW7095A CH4)· Low Sta...

product image

APW7095A Picture
See larger image
SeekIC No. : 004287678 Detail

APW7095A: Features: · Supports for synchronous rectification (CH1, CH2 and CH5)· Supports for down or up-down Zeta conversions (CH1 and APW7095 CH2)· Supports for up, flyback or up-down SEPIC conversions (APW...

APW7095A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
APW7095A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Supports for synchronous rectification (CH1, CH2 and CH5)
· Supports for down or up-down Zeta conversions (CH1 and APW7095 CH2)
· Supports for up, flyback or up-down SEPIC conversions (APW7095A CH2, CH3, APW7095 CH4, CH5 and CH6)
· Supports for Inverting conversion (APW7095A CH4)
· Low Start-up Voltage : 1.4V (CH6)
· Power Supply Voltage Range
    - CH1 to CH5 : 3.0V to 6.5V
    - CH6 : 2.4V to 6.5V
· 1% Reference Voltage Accuracy
· Wide Operating Frequency 100kHz to 1MHz
· Soft-Start Function (CH1 to 6)
· Power Good (PGOOD) Indicator for CH1
· Low Shutdown Current
· Output Short-Circuit Detections
· Lead Free Available (RoHS Compliant)


Application

· Digital Camera
· Camcorder
· Hand-held Instrument

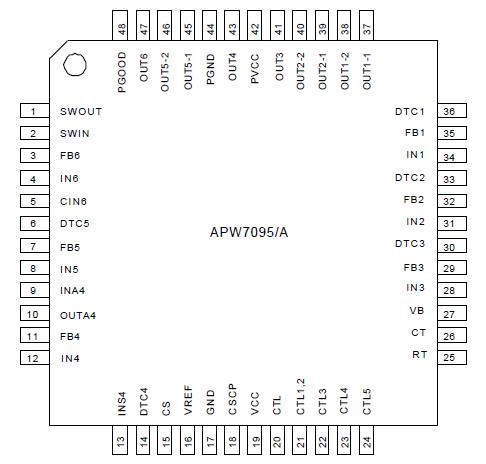

Pinout

Connection Diagram


Specifications

Symbol
Parameter
Rating
Unit
VCC
 VCC Supply Voltage (VCC to GND)
-0.3 ~ 7
V
VPVCC
 PVCC Supply Voltage (PVCC to GND)
-0.3 ~ 7
V
 IN1~6, INA4, INS4, DTC1~5 Input Voltages
-0.3 ~ VCC+0.3
V
 CTL, CTL1~5, SWIN Input Voltages
-0.3 ~ 7
V
 PGOOD Pull High Voltage
-0.3 ~ 7
V
 Maximum Junction Temperature
150
TSTG
 Storage Temperature
-65 ~ 150
TSDR
 Maximum Soldering Temperature, 10 Seconds
300



Description

The APW7095/A is a 6-channel, frequency-settable,voltage-mode,DC/DCcontrol ICproviding a complete power supply solution for high-performance portable digital cameras. The APW7095/A uses pulse-widthmodulation (PWM) and synchronous rectification for high efficiency step-up, step-down, up-down and inverting converters with free input and output settings in 2 or 4-cell AA, 1-cell lithium-ion (Li+), and dualbattery designs. The APW7095/A incorporates error amplifiers, output short-circuit detection, under-voltage lockout, soft-start and output switch control into a chip. The AP7095/Aimproves performance, component count, and size compared to conventional multichannel controllers.

TheAPW7095/A has apower-goodindicator (PGOOD) that signals when CH1 output is within ±10% of the set voltage by monitoring IN1 pin.

The APW7095/A is available in compact 48-pin plastic LQFP and TQFN packages.
