APW7004

Features: • Simple Single-Loop Control Design-Voltage-Mode PWM Control• Fast Transient Response• High-Bandwidth Error Amplifier• 5-Bit Digital-to-Analog Output Voltage Selection• Wide Range from1.3VDC to 3.5VDC• 0.1V Binary Steps from 2.1VDC to 3.5VDC.05V Binary...

product image

APW7004 Picture
SeekIC No. : 004287642 Detail

APW7004: Features: • Simple Single-Loop Control Design-Voltage-Mode PWM Control• Fast Transient Response• High-Bandwidth Error Amplifier• 5-Bit Digital-to-Analog Output Voltage Select...

floor Price/Ceiling Price

Part Number:
APW7004
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Simple Single-Loop Control Design-Voltage- Mode PWM Control
• Fast Transient Response
• High-Bandwidth Error Amplifier
• 5-Bit Digital-to-Analog Output Voltage Selection
• Wide Range from1.3VDC to 3.5VDC
• 0.1V Binary Steps from 2.1VDC to 3.5VDC.05V Binary Steps from 1.3VDC to 2.05 VDC
• VID0-4 Input Pins with Pull High Resistors Built in
• Power-Good Output Voltage Monitor, PGOOD Pin with an Open Collector Configuration
• Over-Voltage and Over-Current Fault Monitors
• Uses MOSFET's RDS(ON) as Current Sensing, No Extra Element Required
• Programmable Switching Frequency Setting
• 200kHz Free-Running Oscillator



Application

• Power Supply for Pentium TM, Pentium ProTM, Pentium TM II,PowerPC TM, K6 TM , 6´86TM and AlphaTM Microprocessors
• High-Power 5V to 3.xV (or below) DC-DC Regulators
• Low-Voltage Distributed Power Supplies 6´ 86TM is a trademark of Cyrix Corporation AlphaTM is a trademark of Digital Equipment Corporation K6 TM is a trademark of Advanced Micro  Devices, Inc. Pentium TM is a trademark of Intel Corporation PowerPC TM is a trademark of IBM



Pinout

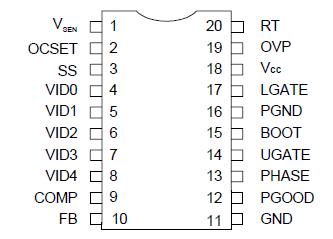

  Connection Diagram


Specifications

Symbol Parameter Rating Unit
Vcc Supply Voltage 15 V
VBOOT VPHASE Boot Voltage 15 V
VI , VO Input , Output or I/O Voltage GND - 0.3 V to VCC + 0.3 V
TA Operating Ambient Temperature Range 0 to 70 °C
TJ Junction Temperature Range 0 to 125 °C
TSTG Storage Temperature Range -65 to +150 °C
TS Soldering Temperature 300 ,10 seconds °C



Description

The APW7004 provides a complete control and multiple protection for a DC-DC converter optimized for high performance microprocessor applications. It is designed to drive two N-Channel MOSFETs in a synchronous- rectified buck topology. The APW7004 integrates output voltage control, output voltage programming, monitoring and protection functions into a single chip IC.
The APW7004 includes a 5-bit digital-to-analog converter (DAC) that provides a easily adjustable and precisely output voltage from 2.1VDC to 3.5VDC in 0.1 increments and from 1.3 VDC to 2.05 VDC in 0.05V increments. Any selected output voltage can be maintained within ±1% accuracy over temperature and line voltage variations.
With a 200kHz free-running triangle-wave oscillator and a error amplifier featuring a 15MHz unity-gain bandwidth and 6V/us slew rate inside the chip, APW7004 can implement a simple, single feedback loop, voltage-mode control topology with high transient performance.
The APW7004 also features with multiple protections against over-current and over-voltage conditions by inhibiting PWM operation. The APW7004 uses the RDS(ON) of the upper MOSFET as the current sensing element which eliminates the demend for an extra component. The APW7004 also monitors the output voltage using a comparator with hysteresis that tracks the DAC output and issues a Power Good signal once the output is within ±10%.
