Product Details

Description



Features:

• 3 Regulated Voltages are provided
− Standard Buck Converter for VCORE (1.15~1.50V)
− Standard Buck Converter for VMEM (2.40~3.15V)
−Linear Controller with SOURCE-SINK Regulation for VTT(1.25V)
• Simple Single-Loop Control Design
− Voltage-Mode PWM Control
• Excellent Output Voltage Regulation
− VCORE Output : ±1% Over Temperature
− VMEM Output : ±1.5% Over Temperature
− VTT Output : 1/2 VIN ±25mV Over Temperature Min. VIN = 1.7V
• Fast Transient Response
− Built-in Feedback Compensation
− Full 0% to 100% Duty Ratio
• Over-Voltage and Over-Current Fault Monitor
• Constant Frequency Operation(200kHz)
• 24 pins, SOIC Package



Application

• M/B DDR Power Regulation
• AGP/PCI Graphics Power Regulation
• SSTL-2 Termination



Pinout

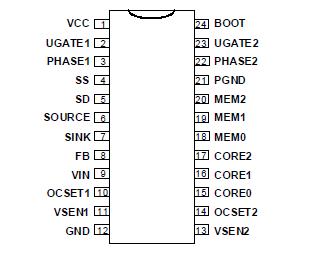

  Connection Diagram


Specifications

Symbol
Parameter
Value
Unit
VCC
Supply voltage
15
V
VI,VO
Input , Output or I/O Voltage
GND -0.3 V to VCC +0.3
V
TA
Operating Ambient Temperature
Range 0 to 70
°C
TJ
Junction Temperature
Range 0 to 125
°C
TSTG
Storage Temperature
-65 to +150
°C
TS
Soldering Temperature
Range -65 to +150
°C



Description

The APW7046 provides the power controls and protections for three output voltages on AGP/PCI Graphic Card applications. It integrates two PWM controllers , one SOURCE-SINK linear controller, as well as the monitor and protection functions into a single package. One PWM converter (PWM1) supplies the VCORE(1.5V) for the GPU with a standard buck converter. The other standard buck converter (PWM2) regulates the VMEM(2.5V) for the power of DDR memory. The SOURCE-SINK linear controller control two external MOSFETs to be a linear regulator with the capability of sourcing and sinking current. It regulates the VTT (1.25V) power for DDR Termination voltage.

Additional built-in over-voltage protection (OVP) will be started when the VCORE or VMEM output is above 115% of each DAC setting (VCORE and VMEM). OVP function will shutdown the all output voltages until re-powering on the IC. For each PWM converter, the over-current function monitors the output current by sensing the voltage drop across the MOSFET's rDS(ON) , eliminating the need for a current sensing resistor.
