Product Details

Description

Features:

     20V/12.8A , R_DS(ON)=20m(typ.) @ V_GS=4.5V
                          R_DS(ON) =25m(typ.) @ V_GS =2.5V

     Super High Dense Cell Design for Extremely
        Low R _DS(ON)     Reliable and Rugged
     TO-252 Package

Application

Power Management in Notebook Computer ,Portable Equipment and Battery Powered Systems.

Pinout

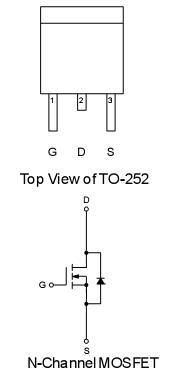

Connection Diagram

Specifications

Symbol	Parameter		Rating	Unit
P_D	Maximum Power Dissipation	TA =25°C	50	W
		TA =100°C	10
T_J	Maximum Junction Temperature		150	°C
T_STG	Storage Temperature Range		-55 to 150	°C
R_jA	Thermal Resistance Junction to Ambient		50	°C/W
